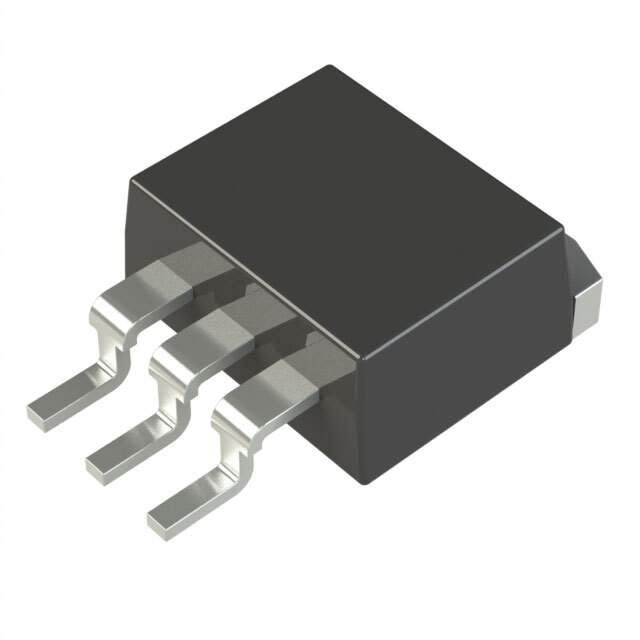

The MCP1825S-1802E/EB is a high-performance, low-dropout voltage regulator from Microchip Technology, designed to deliver a fixed output voltage of 1.8V with a maximum output current of up to 500mA. This component is an excellent choice for applications that require a stable voltage supply with low voltage dropout, making it perfect for battery-powered devices, microcontroller power supplies, and other portable electronics.

Key Features:

• Output Voltage: 1.8V fixed output, suitable for a wide range of low-power electronics.
• High Current Output: Capable of delivering up to 500mA, providing ample power for most small to medium-sized projects.
• Low Dropout Voltage: Features a low dropout voltage, ensuring efficient operation even when the input voltage is close to the output voltage.
• Stable Performance: Offers excellent line and load regulation, maintaining a consistent output despite changes in input voltage or load conditions.
• Thermal Protection: Integrated thermal shutdown feature protects the device from overheating, enhancing reliability and longevity.
• Short Circuit Protection: Built-in current limit and short-circuit protection to safeguard the regulator and connected components from damage.
• Low Power Consumption: Designed with a low quiescent current, making it ideal for battery-powered applications where power efficiency is critical.
• Small Footprint: Available in a compact SOT-223-5 package, allowing for efficient use of PCB space.

Applications:

The MCP1825S-1802E/EB is versatile and can be used in various applications, including:

• Portable electronics
• Battery-powered devices
• Microcontroller power supplies
• Point-of-load conversions
• Networking equipment

With its combination of features, the MCP1825S-1802E/EB from Microchip Technology is an ideal choice for designers looking for a reliable and efficient fixed voltage LDO regulator for their next project.
