Microchip Technology MIC22602YML-TR

The MIC22602YML-TR from Microchip Technology is a high-performance, adjustable frequency, synchronous buck (step-down) regulator that features HyperLight Load® and Hyper Speed Control™ technologies. This advanced regulator is designed to deliver excellent power efficiency and transient response, which are critical for powering sensitive electronic components in various applications.

Operating over an input voltage range of 4.5V to 20V, the MIC22602YML-TR is capable of delivering up to 6A of continuous output current. It also offers an adjustable output voltage range from 0.7V to 5.5V, providing the flexibility needed to cater to a wide range of power requirements. The device's high-frequency operation (up to 1MHz) allows for the use of small surface-mount inductors and capacitors, resulting in a compact power supply solution with improved transient response.

The MIC22602YML-TR is equipped with a variety of protection features to ensure the safety and reliability of the end application. These include under-voltage lockout, over-temperature protection, and over-current protection. Furthermore, the regulator has a power good (PG) output to provide system power sequencing or enable tracking for multiple rails.

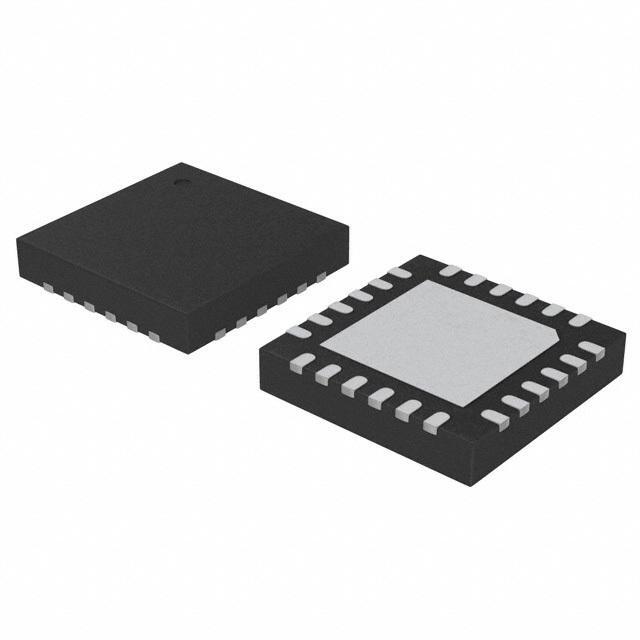

This regulator comes in a 22-lead 4mm x 4mm MLF® package, which is an ideal form factor for space-constrained applications such as portable devices, networking equipment, and industrial systems. Its thermal performance is enhanced by a junction temperature range of -40°C to +125°C, allowing it to operate reliably in a wide range of environmental conditions.

The MIC22602YML-TR is also RoHS compliant and lead-free, making it suitable for use in environmentally sensitive applications. Its tape and reel packaging (TR suffix) facilitates automated pick-and-place manufacturing processes, ensuring efficient assembly and production.

In summary, the MIC22602YML-TR from Microchip Technology is a versatile and efficient solution for demanding power supply applications, offering high current capabilities, fast transient response, and a compact footprint.
