The MICRF230YQS-TR from Microchip Technology is a highly integrated QwikRadio® UHF ASK/FSK Transmitter designed for a variety of applications in the industrial, automotive, and consumer markets. This versatile device operates in the 300MHz to 450MHz frequency range, making it suitable for a wide range of wireless communication tasks.

Key Features

• Frequency Range: The transmitter operates in the UHF band, specifically from 300MHz to 450MHz, allowing for flexible use across various regions and applications.
• Modulation: It supports both Amplitude Shift Keying (ASK) and Frequency Shift Keying (FSK) modulation schemes, providing designers with the flexibility to choose the appropriate modulation for their specific application needs.
• Low Power Consumption: Designed for battery-powered applications, the MICRF230YQS-TR features low current consumption, which is critical for extending battery life in portable devices.
• High Output Power: It is capable of delivering up to +10dBm of output power, ensuring reliable communication over longer distances or in noisy environments.
• Integrated Features: The device includes an integrated PLL (Phase-Locked Loop) synthesizer and a power amplifier, reducing the need for external components and simplifying the overall design.

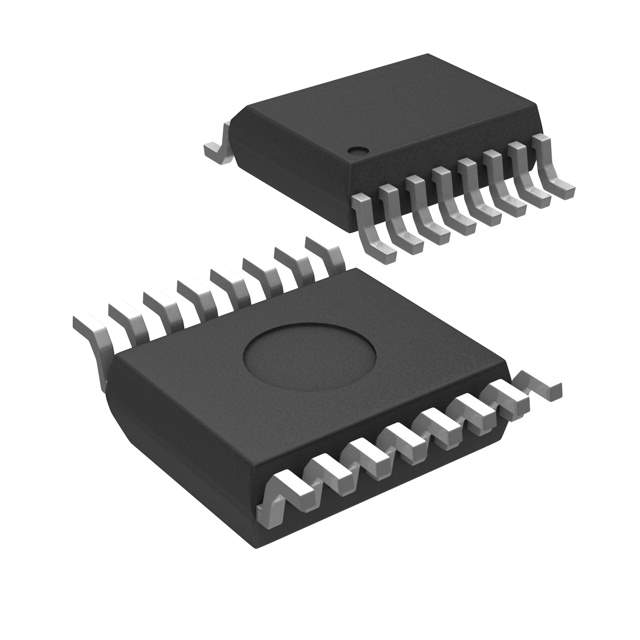

• Packaging: Available in a compact 16-pin QSOP package, the MICRF230YQS-TR is designed for space-constrained applications.
• Temperature Range: It operates over an industrial temperature range of -40°C to +125°C, making it suitable for harsh environments.

Applications

The MICRF230YQS-TR transmitter is ideal for a variety of wireless applications, including remote keyless entry systems, garage door openers, home automation, wireless sensors, and telemetry systems. Its robust feature set and flexible design options make it an excellent choice for designers looking to incorporate reliable wireless communication into their products.

Ordering Information

The product is available in tape and reel packaging, denoted by the suffix "-TR", which is suitable for automated assembly processes, ensuring efficiency and consistency in high-volume production environments.
