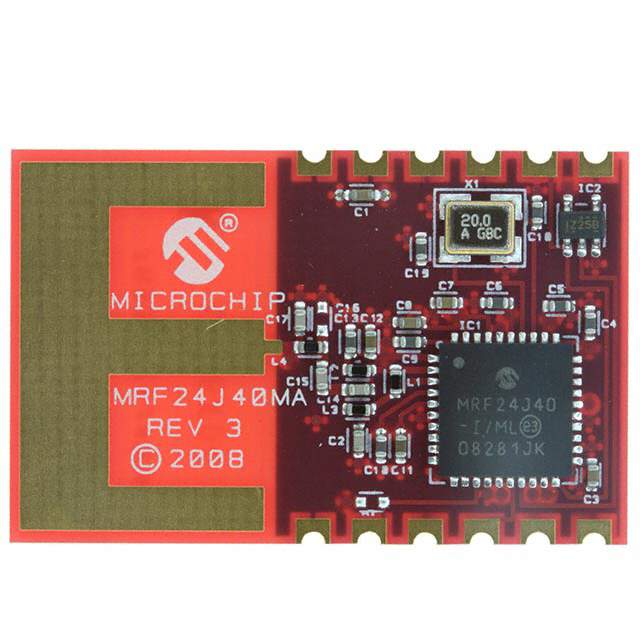

MRF24J40MA-I/RM - 2.4 GHz IEEE 802.15.4 RF Transceiver Module

The MRF24J40MA-I/RM is a compact and efficient wireless communication module from Microchip Technology. This module is designed to enable RF connectivity for a wide range of applications, including home automation, industrial control, and smart energy management. As part of the IEEE 802.15.4 standard, it operates in the 2.4 GHz frequency band and is optimized for low-power and low-data-rate transmissions.

Key Features:

• Integrated Solution: The module includes an MRF24J40 transceiver IC, a 20 MHz crystal, a frequency reference, and an onboard antenna, providing a ready-to-use RF interface.
• Performance: It offers a high data rate of up to 250 kbps and supports both the standard (DSSS) and non-beacon-enabled networks, making it versatile for different communication protocols.
• Range: With an output power of +20 dBm and receiver sensitivity of -94 dBm, the MRF24J40MA-I/RM can achieve an impressive range for communication, which is further extendable with external power amplifiers and low noise amplifiers.
• Low Power Consumption: The module is designed for low-power applications, featuring multiple power management modes, including a sleep mode for battery conservation.
• Easy Integration: The small footprint (11 x 19 x 2.3 mm) of the surface-mount module allows for easy integration into a variety of designs without requiring extensive RF experience.
• Compliance: It is compliant with the IEEE 802.15.4 standard, ensuring interoperability with other compliant devices and systems.

Applications:

• Smart Home Automation
• Wireless Sensor Networks
• Industrial Control Systems
• Remote Monitoring
• Smart Energy Management

The MRF24J40MA-I/RM module from Microchip Technology is a versatile and powerful solution for adding wireless capabilities to a range of electronic devices. Its ease of use, combined with robust performance, makes it an ideal choice for designers looking to incorporate reliable RF communication without the need for complex RF design and development.
