Product Overview: PIC18F4680-I/PT from Microchip Technology

The PIC18F4680-I/PT is a high-performance microcontroller unit (MCU) from the renowned manufacturer Microchip Technology, designed to cater to a wide range of embedded system applications. This MCU is part of the popular PIC18F family, known for their robust architecture, rich feature set, and ease of use. The PIC18F4680-I/PT, in particular, is a versatile choice for automotive, industrial, and consumer applications that require advanced communication protocols, reliable operation, and cost-effectiveness.

Featuring a powerful 8-bit RISC architecture, this microcontroller provides a perfect blend of speed and efficiency. It operates at a maximum frequency of 40 MHz, delivering the computational power needed for complex tasks. The device is equipped with 32 KB of flash memory, providing ample space for application code, and 1536 bytes of RAM for data storage, ensuring smooth operation.

The PIC18F4680-I/PT boasts an array of integrated peripherals that enhance its functionality. It includes a 10-bit, 13-channel Analog-to-Digital Converter (ADC), which allows for precise measurement of analog signals, making it ideal for sensor interfacing. Moreover, it features two Enhanced Capture/Compare/PWM (ECCP) modules, which provide advanced control for motor applications and other PWM-intensive tasks.

Communication is a strong point for this MCU, as it supports multiple serial communication interfaces, including an Enhanced USART module for RS-232, RS-485, and LIN compatible serial communication, along with Master Synchronous Serial Port (MSSP) modules for SPI and I²C communication. This makes the PIC18F4680-I/PT an excellent choice for systems that require robust data exchange capabilities.

The device is also designed with protection in mind, featuring Power-on Reset (POR), Power-up Timer (PWRT), Oscillator Start-up Timer (OST), Brown-out Reset (BOR), and Watchdog Timer (WDT) to ensure reliable operation under varying conditions.

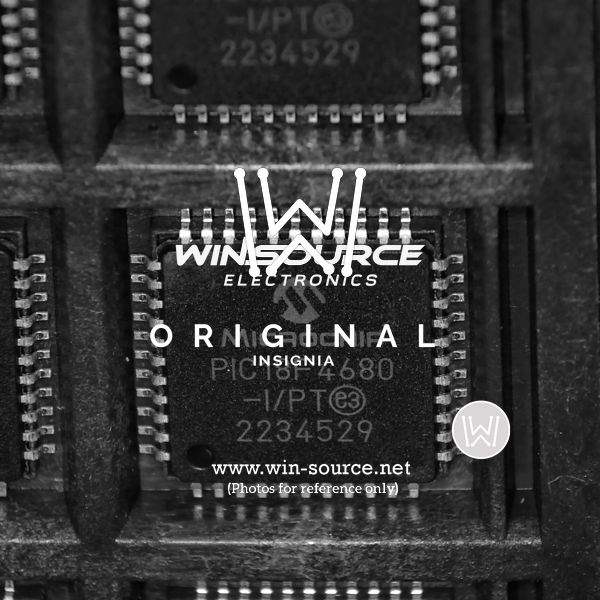

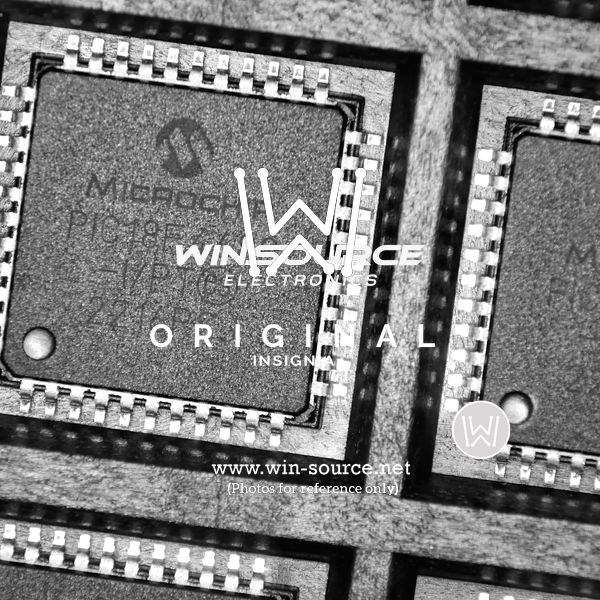

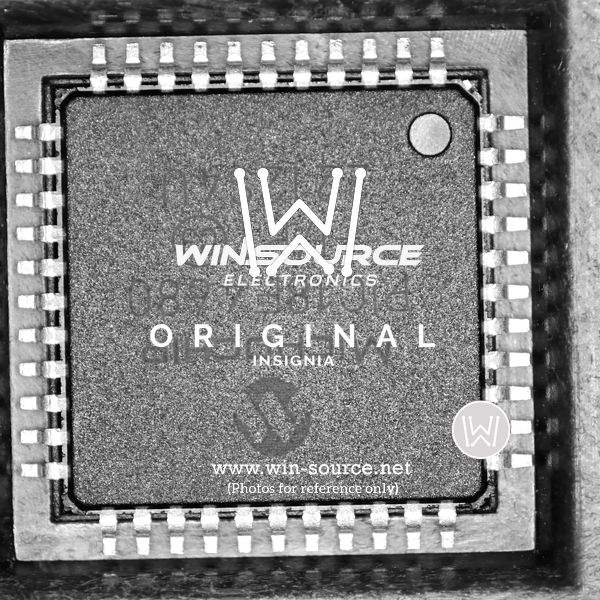

Encased in a 44-pin TQFP package, the PIC18F4680-I/PT is designed for surface-mount technology, allowing for compact PCB design. Its extended temperature range of -40°C to +85°C ensures performance across diverse environments. With its rich set of features and Microchip's reputation for quality, the PIC18F4680-I/PT is a smart choice for designers seeking a reliable and capable microcontroller for their next project.
