Microchip Technology PIC18F47K42-E/PT Microcontroller

The PIC18F47K42-E/PT is a high-performance microcontroller unit (MCU) from Microchip Technology's renowned PIC18 product family. This powerful MCU is designed for a wide range of applications, including industrial control systems, automotive systems, consumer electronics, and IoT devices. It offers a perfect blend of power, flexibility, and ease-of-use, making it an ideal choice for both complex and simple projects.

At the heart of the PIC18F47K42-E/PT lies a robust 8-bit architecture, which operates at speeds up to 64 MHz. The device is equipped with an extensive set of features that include 128 KB of Flash memory, 8 KB of SRAM, and 1 KB of EEPROM. This ample memory space allows for sophisticated program algorithms and data storage without the need for external memory components, thus simplifying design and reducing system costs.

One of the standout features of this microcontroller is its rich set of peripherals. The PIC18F47K42-E/PT comes with multiple communication interfaces, such as UART, SPI, and I2C, enabling easy data exchange with other devices and systems. Additionally, it has a range of Core Independent Peripherals (CIPs) like timers, comparators, and PWM modules that offload tasks from the CPU, improving system efficiency and reducing power consumption.

The device also boasts an integrated 12-bit Analog-to-Digital Converter (ADC) with Computation (ADCC), which simplifies the implementation of complex analog signal acquisition and processing tasks. Furthermore, it includes a 5-bit Digital-to-Analog Converter (DAC), a temperature sensor, and a 32-bit Real-Time Clock and Calendar (RTCC) for time-sensitive applications.

For enhanced security, the PIC18F47K42-E/PT incorporates features such as Memory Access Partition (MAP) to protect code and data, and Device Information Area (DIA) that provides a unique device identification number for intellectual property protection or device serialization.

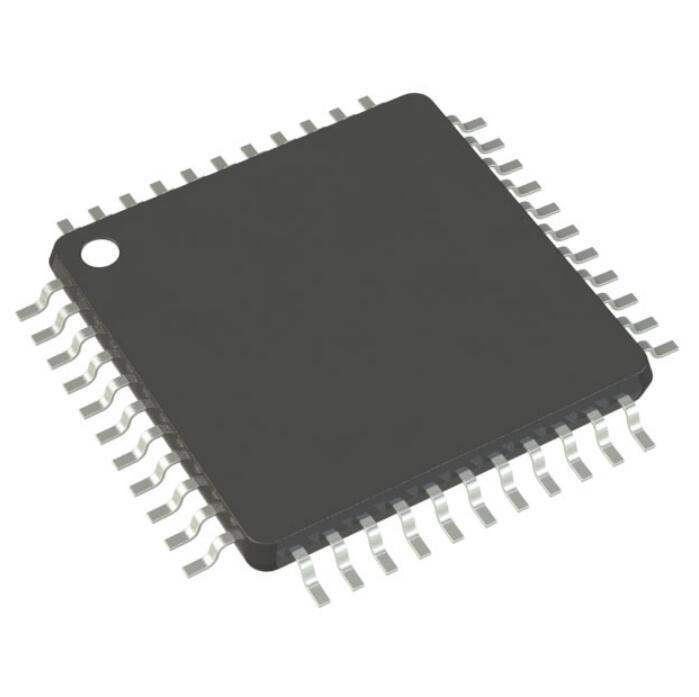

The microcontroller is available in a 44-pin TQFP package, making it suitable for space-constrained applications. Its extended operating voltage range of 1.8V to 5.5V and industrial temperature range of -40°C to +85°C ensure reliable operation under varying conditions. Whether you're developing a prototype or a full-scale production, the PIC18F47K42-E/PT from Microchip Technology is a versatile and dependable choice that will meet and exceed your embedded system needs.
