The SG7805AK from Microchip Technology is a robust, reliable, and efficient fixed-voltage regulator designed to provide a stable 5V output. As a member of Microchip's expansive voltage regulator family, the SG7805AK stands out for its ease of use and consistent performance, making it an ideal choice for a wide array of electronic applications.

Key Features

• Fixed Output Voltage: This component provides a steady 5V output, which is essential for maintaining the integrity of electronic circuits.
• High Current Capability: The SG7805AK can deliver up to 1.5A of output current, catering to applications with higher power demands.
• Thermal Overload Protection: The built-in thermal shutdown feature ensures the device operates within safe temperature limits, preventing potential damage from overheating.
• Short Circuit Protection: In the event of a short circuit, this voltage regulator automatically shuts down to protect both the regulator and the connected components.
• Output Transistor Safe-Area Compensation: This feature helps in maintaining stability and reliability across various load conditions.

Applications

The SG7805AK is versatile and can be used in a multitude of electronic devices and systems. Its applications include:

• Power supplies for electronic equipment
• Consumer electronics
• Industrial control systems
• Embedded systems
• Automotive applications

Product Specifications

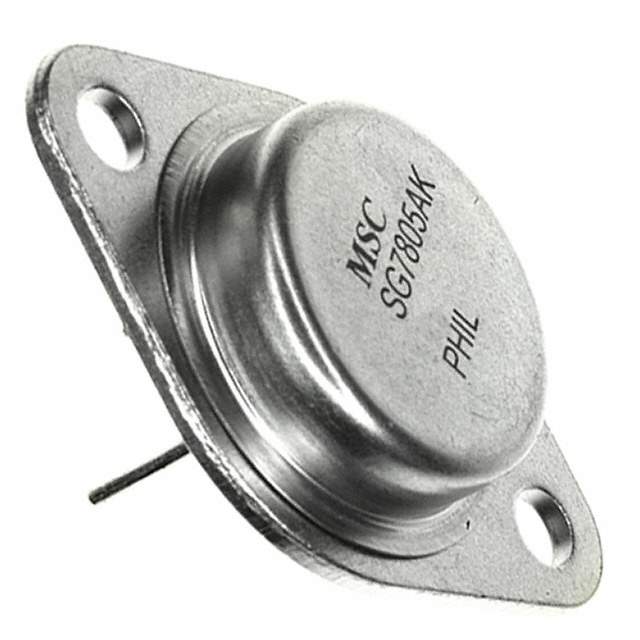

With a robust TO-3 package, the SG7805AK is engineered for durability and longevity. The device operates within a junction temperature range of -55°C to +150°C, making it suitable for harsh environments. It also features a standard pinout, which simplifies the design process and ensures compatibility with a wide range of circuit boards.

For engineers and designers looking for a reliable power management solution, the SG7805AK from Microchip Technology offers high efficiency, protection features, and stable performance to meet the requirements of various electronic applications.
