Product Overview: SMLJ18AE3/TR13 from Microchip Technology

The SMLJ18AE3/TR13 is a high-quality transient voltage suppression (TVS) diode produced by Microchip Technology, a leader in the semiconductor industry. This robust electronic component is specifically designed to protect sensitive electronic equipment from voltage spikes and transients induced by lightning and other transient voltage events.

Key Features:

• Voltage Protection: With a stand-off voltage of 18V, the SMLJ18AE3/TR13 is well-suited for protecting circuits with an operating voltage around this level. It ensures that any transient above this threshold is clamped and dissipated, safeguarding connected components.
• High Surge Capability: This device is capable of handling surge currents up to several hundred amperes, making it an excellent choice for high-power applications where surge protection is critical.
• Low Clamping Voltage: The low clamping voltage of this TVS diode ensures that excess voltage is quickly and effectively clamped, minimizing the risk of damage to the protected device.
• Uni-directional: The SMLJ18AE3/TR13 is a uni-directional TVS diode, providing protection in one direction which is ideal for DC power supply applications.

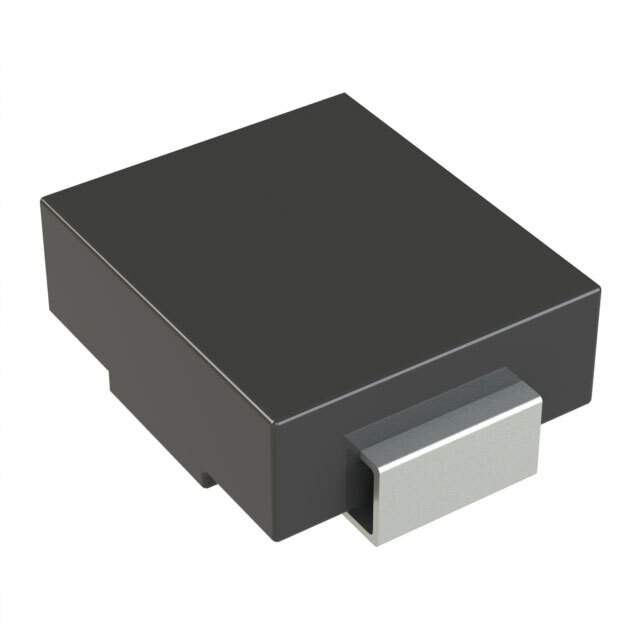

• Surface Mount Package: Packaged in a DO-214AB (SMCJ) package, it is designed for surface mount applications, making it suitable for use in modern compact electronic assemblies.
• Environmentally Friendly: It complies with RoHS and REACH standards, ensuring that it meets current environmental regulations and can be used in products sold worldwide.

Applications:

The SMLJ18AE3/TR13 is versatile and can be used in a wide range of applications. It is particularly useful in protecting against overvoltage conditions in:

• Telecommunications systems
• Industrial controls
• Power supply units
• Medical equipment
• Consumer electronics

With its robust design and high surge capability, the SMLJ18AE3/TR13 from Microchip Technology is an excellent choice for engineers looking to enhance the reliability and longevity of their electronic designs.
