Microchip Technology USB5744B-I/2GX01 Product Overview

The USB5744B-I/2GX01 is a high-performance USB 3.0 hub controller from the reputable manufacturer, Microchip Technology. This advanced hub controller is designed to deliver superior connectivity solutions for a wide range of applications, including desktop and mobile PCs, tablets, gaming consoles, and embedded systems. The USB5744B-I/2GX01 is an ideal choice for system designers looking to expand USB capabilities with a reliable and efficient component.

Key Features

• USB 3.0 Compliance: The device is fully compliant with USB 3.0 specification, ensuring fast data transfer rates of up to 5 Gbps for connected devices.
• Multiple Ports: It features four downstream ports, providing ample connectivity for multiple USB devices simultaneously.
• High-Speed Data Channels: Each port supports high-speed data channels, making it suitable for bandwidth-intensive applications.
• Energy Efficiency: The hub controller includes energy-efficient features such as individual port power management and link power management to optimize power usage.
• FlexConnect Technology: With Microchip's FlexConnect Technology, the USB5744B-I/2GX01 can easily switch between a host and device role, offering greater flexibility in USB port usage.

Applications

The USB5744B-I/2GX01 is versatile and can be used in various applications that require expansion of USB connectivity. It is particularly useful in:

• Consumer Electronics
• Desktop and Mobile Computing
• Networking and Telecommunications Equipment
• Industrial Control Systems
• Automotive Infotainment Systems

Technical Specifications

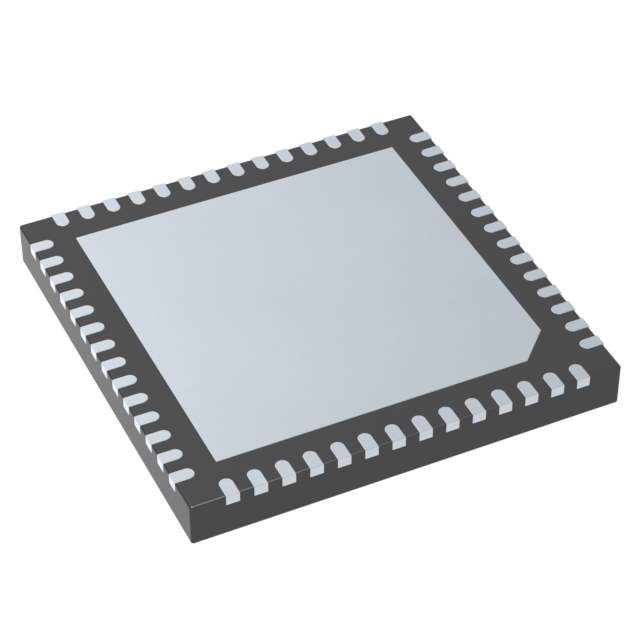

The device operates over an industrial temperature range and comes in a 64-pin QFN (Quad Flat No-leads) package. It supports battery charging specifications and has integrated charge detection, which enables faster charging for connected devices. Additionally, it features configurable port over-current detection and protection, ensuring the safety and longevity of both the hub and connected peripherals.

Conclusion

In conclusion, the USB5744B-I/2GX01 by Microchip Technology is a robust USB hub controller that offers high-speed data transfer, energy efficiency, and flexible connectivity options. Its wide range of applications and technical capabilities make it a top choice for designers looking to enhance USB functionality in their products.
