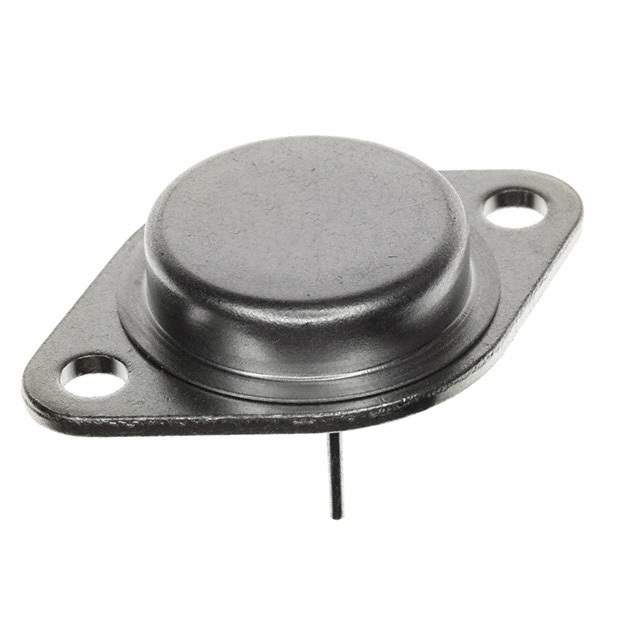

SG7905K-JAN Real Image
Same model may have multiple batches, images only for reference.

SG7905K-JAN

Part No SG7905K-JAN
Manufacturer Microsemi Corporation
Catalog PMIC - Voltage Regulators - Linear
Description IC REG LDO -5V 1.5A TO3 / Standard Regulator Neg -5V 3.3A 3-Pin(2+Tab) TO-3 Tube
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Integrated Circuits (ICs)
Polarity Negative
Output Type Fixed
Number of Regulators 1
Voltage Input MAX -35V
Output Voltage -5V
Voltage Dropout (Maximum) 2.3V @ 1A
Output Current 1.5A
Operating Supply Current 2.5mA
PSRR 54dB (120Hz)
Protection Features Over Current, Over Temperature, Short Circuit
Operating Temperature Range -55°C ~ 125°C
Mounting Style Through Hole
Package TO-204AA, TO-3
Manufacturer Package TO-3
Win Source Part Number 794183-SG7905K-JAN
Popularity Medium
Supply and Demand Status Limited
Family Name SG7905
Introduction Date January 01, 2000
ECCN EAR99
Country of Origin Philippines
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian SG7905K-JAN CAD Model

Description

The SG7905K-JAN from SG is a negative fixed voltage regulator that features a single regulator and operates on a voltage input maximum of -35V.

  • Output Voltage: -5V
  • Current Output: 1.5A
  • Package: TO-204AA, TO-3
  • Mounting: Through-hole
  • Family: SG7905
  • Category: ICs
  • Minimum Dropout Voltage: 2.3V @ 1A
  • PSRR: 54dB (120Hz)
  • Obsolete: No
  • EOL Date: 2029 (estimated)
  • Supply and Demand: Limited
  • Cross-Reference: TS7905CM, TS7905CM RN, TS7905CI, and TS7905CZ
