Same model may have multiple batches, images only for reference.

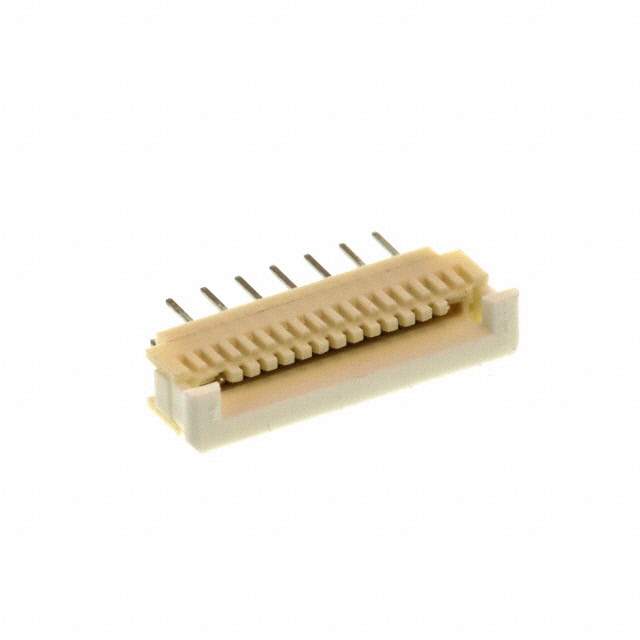

0520301429 Real Image
Same model may have multiple batches, images only for reference.

0520301429

Part No 0520301429
Manufacturer Molex, LLC
Catalog Flat Flex Cables (FFC, FPC)
Description CONN FPC VERT 14POS 1.00MM PCB
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Features 14 Position FPC Connector Contacts, Vertical - 1 Sided 0.039" (1.00mm) Through Hole
Manufacturer Molex, LLC
Series 52030
Package Tray
Part Status Obsolete
Operating Temperature Range -20°C ~ 80°C
Mounting Through Hole
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4051
Other Part Number 052030-1429, 052030-1429-C, 0520301429-C, 23-0520301429, 52030-1429, 52030-1429-C, 520301429, 520301429-C, WM1185, WM1185-ND
Quantity per package 1
Popularity High
Supply and Demand Status Balance
Win Source Part Number 907206-0520301429
Ultra Librarian 3D Model Ultra Librarian 0520301429 CAD Model

Description

The Molex 907206-0520301429 is a high-quality electronic component that is designed to deliver exceptional performance. This product is manufactured by Molex, LLC and is part of the company's 52030 series of high-quality electronic components.

  • Package: Tray
  • Mounting Type: Through-Hole
  • Operating Temperature: -20°C to 80°C
  • Positions: 14
  • Connector Type: FPC Connector Contacts
  • Orientation: Vertical - 1 Sided
  • Pitch: 0.039" (1.00mm)
  • Termination: Through Hole
  • Part Status: Obsolete
  • ECCN: EAR99
  • Supply and Demand: Balanced
  • Quantity per Package: 1
  • REACH Status: Unaffected
  • HTSUS: 8536.69.4051
