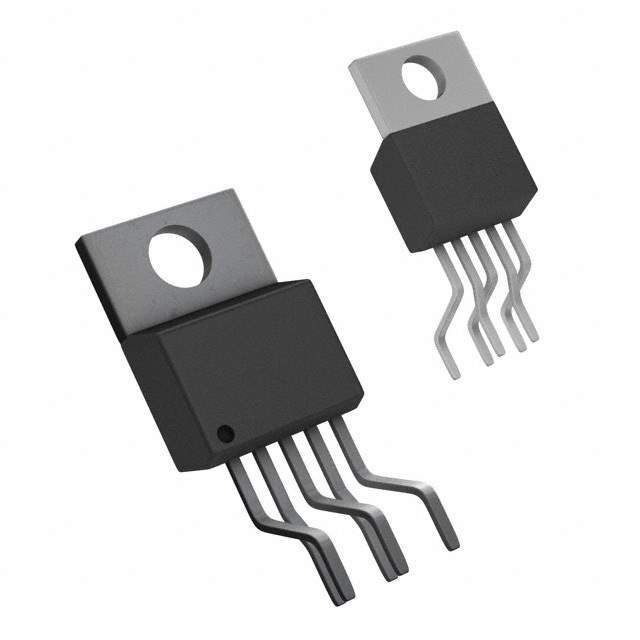

The LP3966ET-5.0 is a 5.0V fixed-output low-dropout (LDO) voltage regulator from National Semiconductor, now part of Texas Instruments (TI). It's designed to provide a stable and regulated 5.0V output voltage from a higher input voltage, with a low dropout voltage, meaning it can maintain regulation even when the input voltage is only slightly higher than the output voltage. The 'ET' likely refers to the package type. This regulator is suitable for various battery-powered and portable applications.

Applications

• Battery-powered devices
• Portable electronics
• Mobile phones
• PDAs
• Laptops
• Digital cameras

Features

• Fixed 5.0V Output: Provides a stable and regulated 5.0V output voltage.
• Low Dropout Voltage: Maintains regulation even with a small input-output voltage differential.
• Low Quiescent Current: Minimizes power consumption when the regulator is not supplying a load.
• Overcurrent Protection: Protects the regulator and the load from overcurrent conditions.
• Thermal Shutdown: Protects the regulator from overheating.
• Stable with Ceramic Output Capacitors: Provides stable operation with ceramic output capacitors, which are smaller and more cost-effective than electrolytic capacitors.

Benefits

• Stable Voltage Supply: Provides a stable and regulated voltage supply for sensitive electronic circuits.
• Extended Battery Life: Low quiescent current extends battery life in portable devices.
• Improved System Reliability: Protects the regulator and the load from overcurrent and overtemperature conditions.
• Simplified Circuit Design: Requires only a few external components for operation.
• Compact Design: Small package size enables the use of smaller and more compact electronic devices.

Additional Details

The LP3966ET-5.0 typically has a dropout voltage of a few hundred millivolts at the rated output current. The operating temperature range is typically -40°C to +125°C. Detailed specifications, including input voltage range, output current capability, and dropout voltage characteristics, can be found in the manufacturer's datasheet.
