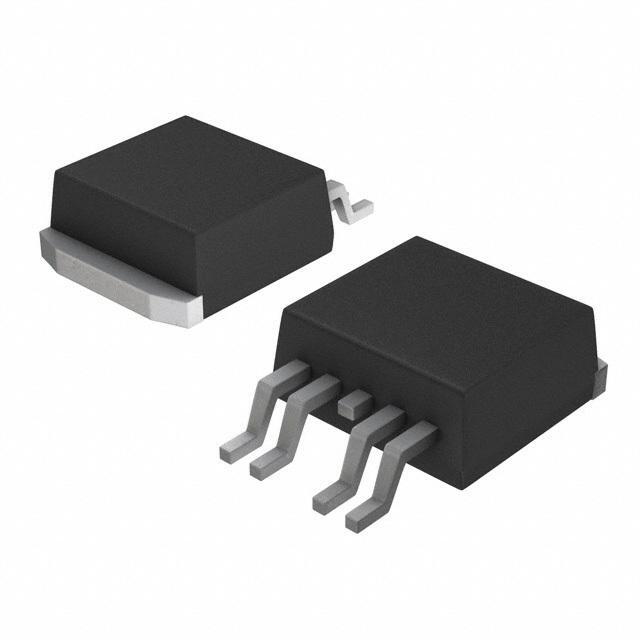

Same model may have multiple batches, images only for reference.
BUK714R1-40BT,118 Nexperia USA Inc.
Same model may have multiple batches, images only for reference.

BUK714R1-40BT,118

Part No BUK714R1-40BT,118
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 40V 75A D2PAK / Trans MOSFET N-CH 40V 187A Automotive 5-Pin(4+Tab) D2PAK T/R
Datasheet
BUK714R1-40BT,118 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Nexperia USA Inc.
Series TrenchPLUS
Part Status Obsolete(EOL)
Channel Type Type N
Technology MOSFET
Drain Source Voltage 40V
Current - Continuous Drain (Id) @ 25°C 75A (Tc)
Drive Voltage (Max Rds On, Min Rds On) 10V
Vgs(th) (Maximum) @ Id 4V @ 1mA
Gate Charge (Qg) (Maximum) @ Vgs 83nC @ 10V
Input Capacitance (Ciss) (Maximum) @ Vds 6808pF @ 25V
Vgs (Maximum) ±20V
FET Feature Temperature Sensing Diode
Power Dissipation (Maximum) 272W (Tc)
Rds On (Maximum) @ Id, Vgs 4.1 mOhm @ 50A, 10V
Operating Temperature Range -55°C ~ 175°C (TJ)
Mounting SMD
Manufacturer Package SOT-426
Package TO-263-5, D2Pak (4 Leads + Tab), TO-263BB
Win Source Part Number 770651-BUK714R1-40BT,118
Popularity Medium
Supply and Demand Status Limited
Quantity per package 800
Family Name BUK714R1-40BT
Introduction Date October 02, 2002
ECCN EAR99
Halogen Free Compliant
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian BUK714R1-40BT,118 CAD Model

Description

The BUK714R1-40BT,118 is a MOSFET transistor manufactured by Nexperia USA Inc.. It is a part of the TrenchPLUS series and has a TO-263-5, D2Pak (4 Leads + Tab), TO-263BB package.

  • Package: TO-263-5, D2Pak (4 Leads + Tab), TO-263BB
  • Channel Type: N
  • Drain-Source Voltage: 40V
  • Gate-Source Voltage: ±20V
  • Continuous Drain Current: 75A (Tc)
  • Power Dissipation: 272W (Tc)
  • FET Feature: Temperature Sensing Diode
  • Drive Voltage: 10V
  • Input Capacitance: 6808pF @ 25V
  • Gate Charge: 83nC @ 10V
  • Compliance: Halogen-Free
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: Obsolete
