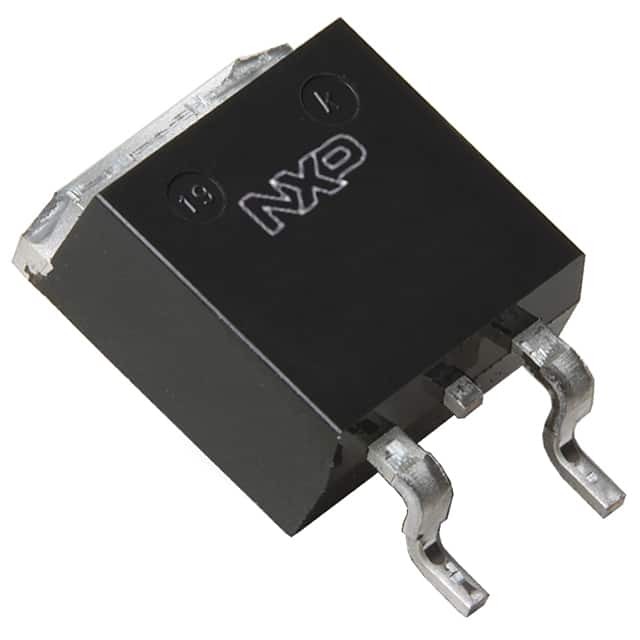

The BUK7613-60E,118 is an N-Channel MOSFET that belongs to the TrenchMOS series of automotive AEC-Q101 MOSFETs.

• Voltage: It has a drain to source voltage of 60V
• Current: continuous drain current of 58A @ 25°C.
• Rds On (Max): 13mOhm @ 15A and 10V.
• Gate Charge (Qg): 22.9 nC @ 10V
• Input Capacitance (Ciss): 1730 pF @ 25V.
• Package: TO-263-3, D²Pak package with a D2PAK supplier device package.
• Gate Source Voltage: maximum gate source voltage of ±20V
• Operating Temperature: -55°C to 175°C (TJ).
• Ideal for: use in applications such as power supplies, motor control, and lighting.
