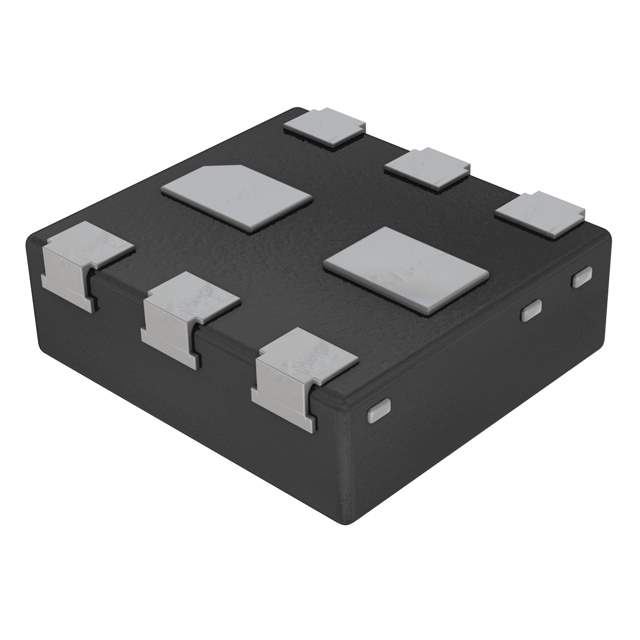

PMDXB550UNEZ Real Image
Same model may have multiple batches, images only for reference.

PMDXB550UNEZ

Part No PMDXB550UNEZ
Manufacturer Nexperia USA Inc.
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET 2N-CH 30V 0.59A 6DFN
Datasheet
PMDXB550UNEZ Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 19 Weeks
Features Mosfet Array 2 N-Channel (Dual) 30V 590mA 285mW Surface Mount DFN1010B-6
Manufacturer Nexperia USA Inc.
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 6-XFDFN Exposed Pad
Case / Package DFN1010B-6
Family Name PMDXB550
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Other Part Number 568-12563-2-ND, 568-12563-1, 568-12563-1-ND, 934069326147, 1727-2277-1, 1727-2277-2, 568-12563-2, 1727-2277-6, 568-12563-6-ND, 568-12563-6
Quantity per package 5000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 890057-PMDXB550UNEZ
Ultra Librarian 3D Model Ultra Librarian PMDXB550UNEZ CAD Model

Description

The Nexperia PMDXB550UNEZ is a MOSFET Array with 2 N-Channel (Dual) transistors manufactured by Nexperia.

  • Configuration: 2 N-Channel (Dual)
  • Voltage - Rated: 30V
  • Current - Rated: 590mA
  • Package / Case: 6-XFDFN Exposed Pad
  • Mounting Type: Surface Mount
  • Family Name: PMDXB550
  • Product Category: Discrete Semiconductor Products
  • Operating Temperature: -55°C ~ 150°C
  • Package: Reel
  • Quantity Per Package: 5000
  • Production Lead Time: 19 Weeks (Estimated)
  • ECCN: EAR99
  • REACH Status: Unaffected
