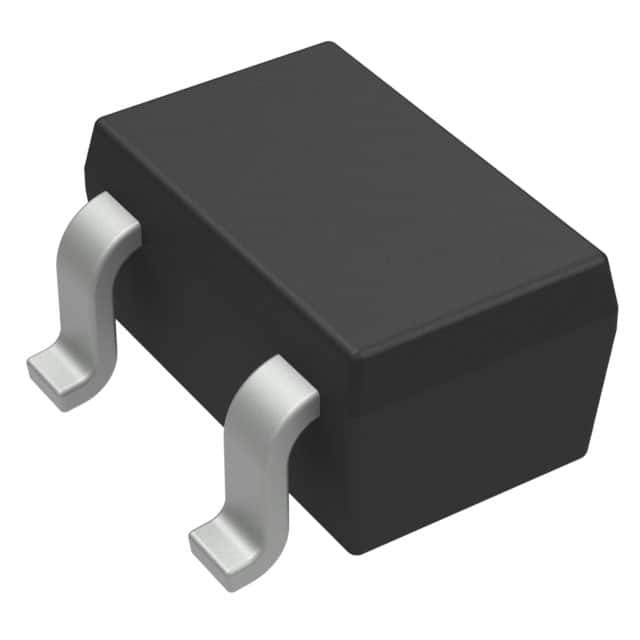

Same model may have multiple batches, images only for reference.
PMSTA92,115
Same model may have multiple batches, images only for reference.

PMSTA92,115

Part No PMSTA92,115
Manufacturer Nexperia USA Inc.
Catalog Transistors (BJT) - Single
Description TRANS PNP 300V 100MA SOT323
Datasheet
PMSTA92,115 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 26 Weeks
Features Bipolar (BJT) Transistor PNP 300 V 100 mA 50MHz 200 mW Surface Mount SOT-323
Manufacturer Nexperia USA Inc.
Series Automotive, AEC-Q101
Package Reel - TR
Operating Temperature Range 150°C (TJ)
Mounting Surface Mount
Package SC-70, SOT-323
Case / Package SOT-323
Family Name PMSTA92
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.21.0095
Other Part Number PMSTA92 T/R-ND, 1727-2416-2, 568-12715-2-ND, 568-12715-1-ND, 1727-2416-1, 568-12715-6, 568-12715-2, PMSTA92,115-ND, 568-12715-1, 568-12715-6-ND, PMSTA92 T/R, 1727-2416-6, 934042290115
Quantity per package 3000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 890101-PMSTA92,115
Ultra Librarian 3D Model Ultra Librarian PMSTA92,115 CAD Model

Description

The Nexperia USA Inc. PMSTA92,115 is a PNP bipolar junction transistor with a voltage rating of 300V and current rating of 100mA. Nexperia USA Inc.

  • Voltage Rating: 300V
  • Current Rating: 100mA
  • Package: Surface mount SOT-323
  • Family: PMSTA92 family
  • Maximum Frequency: 50MHz
  • Power Rating: 200mW
  • Category: Discrete semiconductor products
  • Operating Temperature: Up to 150°C
  • Package: Reel - TR package
  • Units per Package: 3000
  • Production Lead Time: 26 weeks
