Product Overview: 74HC4316D-T from NXP Semiconductors

The 74HC4316D-T is a high-speed Si-gate CMOS device and is part of the 74HC family of integrated circuits. Manufactured by NXP Semiconductors, this chip is designed to provide efficient and reliable performance in a wide range of digital applications. It is particularly well-suited for use in analog multiplexing and demultiplexing, signal gating, and switching applications.

Key Features

• Quad Bilateral Switch: The device contains four independent switches capable of controlling both digital and analog signals. This makes the 74HC4316D-T versatile for various signal routing applications.
• Low ON Resistance: The switches feature low ON resistance, allowing signals to pass through with minimal attenuation and distortion, ensuring high-fidelity signal transmission.
• Wide Voltage Range: It operates across a wide voltage range from 2V to 6V, making it compatible with TTL levels and suitable for interfacing with microcontrollers and other logic devices.
• High Noise Immunity: The 74HC logic family is known for its high noise immunity, which is essential for stable performance in electrically noisy environments.
• Low Power Dissipation: The device has a low power consumption, which is critical for battery-operated and power-sensitive applications.

Applications

The 74HC4316D-T is incredibly versatile and can be used in various applications, including:

• Analog and digital multiplexing/demultiplexing
• Signal gating
• Switching and routing of audio, video, or other analog signals
• Communication systems
• Data acquisition systems
• Computer peripherals

Package and Quality

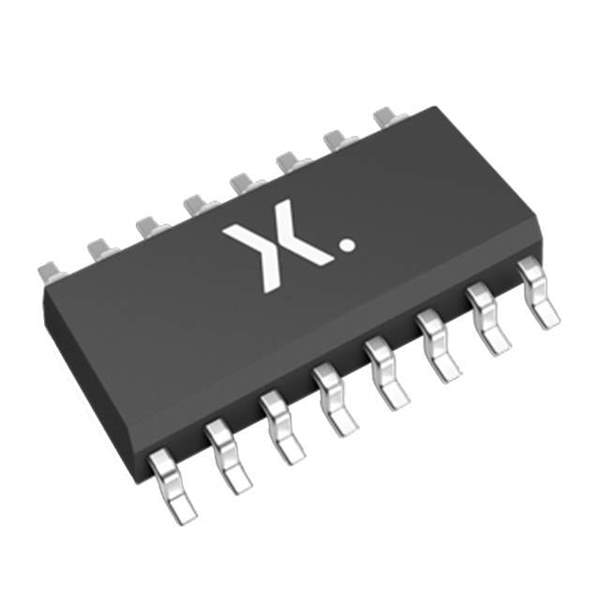

The 74HC4316D-T comes in a SOIC-16 (Small Outline Integrated Circuit) package, which is suitable for surface-mount technology (SMT) and occupies minimal space on a printed circuit board (PCB). NXP Semiconductors is committed to high standards of quality, and the 74HC4316D-T is designed to meet these rigorous requirements, ensuring reliability and performance for critical applications.

With its robust design and versatile functionality, the 74HC4316D-T from NXP Semiconductors is a valuable component for designers seeking a reliable switching solution for their electronic projects.
