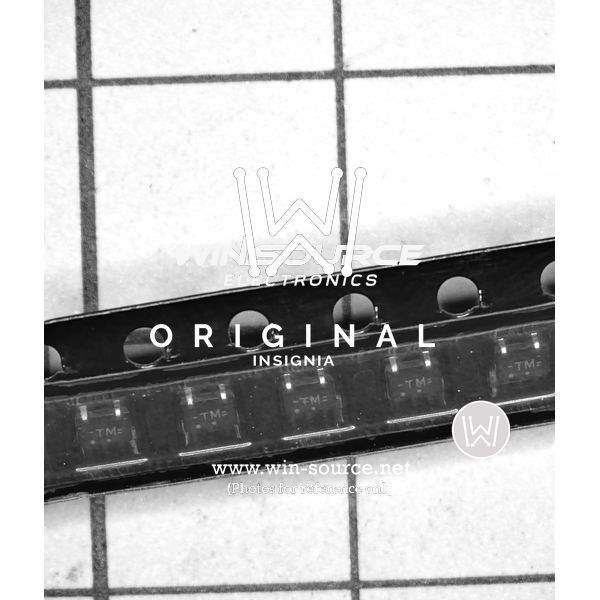

Overview of NXP 74HCT1G125GW

The NXP 74HCT1G125GW is a high-performance, single buffer/line driver with 3-state output from NXP Semiconductors' 74HCT family. This integrated circuit is designed to provide a non-inverting buffer function with the capability to drive a heavy load while maintaining high speed and low power consumption. Its 3-state output feature allows for the connection of multiple outputs to a common bus without the risk of damaging the device or the bus system.

Key Features

• Logic Type: The 74HCT1G125GW is a single non-inverting buffer/line driver with a 3-state output.
• Supply Voltage Range: It operates at a wide supply voltage range from 4.5V to 5.5V, making it compatible with TTL levels.
• High-Speed: The device features high-speed performance with typical propagation delays as low as 8ns.
• Power Dissipation: It has a low power consumption, with a maximum power dissipation of 500 µW, contributing to energy-efficient designs.
• Output Capability: The 74HCT1G125GW can drive up to 5V at the output with a current sinking capability of 8mA, suitable for driving LEDs or other visual indicators.
• Temperature Range: The device is designed to operate over a broad temperature range from -40°C to +125°C, accommodating various environmental conditions.
• Package: It comes in a compact SOT-353 package, which is ideal for space-constrained applications.

Applications

The NXP 74HCT1G125GW is versatile and can be used in a variety of applications. Its primary use is in driving buses in computer and communication systems, where its 3-state outputs can effectively disable the output to allow multiple devices to share a common bus line. Additionally, it is suitable for function generators, digital signal processing, and as a support IC for microprocessor systems where buffer or line driving capabilities are required.

Quality and Reliability

NXP is known for its commitment to quality and reliability, and the 74HCT1G125GW is no exception. It is manufactured to meet the high standards of the automotive industry, ensuring robust performance and a long operational life. Whether used in industrial, commercial, or automotive applications, this IC provides a reliable solution for digital buffering needs.
