The MRF8S9200NR3 is a high-performance RF power transistor designed by NXP Semiconductors, a global leader in the field of high-frequency and high-power electronics. This device is part of NXP's RF power LDMOS transistor portfolio and is specifically engineered to deliver exceptional output power and efficiency for a wide range of applications, including broadcast, industrial, scientific, and medical (ISM) applications.

Key Features

• Frequency Range: The MRF8S9200NR3 operates at a frequency range of 920-960 MHz, making it suitable for GSM and CDMA cellular base station applications, as well as for RF energy applications.
• High Output Power: With a typical P1dB output power of 200 W, this device can handle high power requirements, ensuring robust and reliable performance.
• High Gain: It offers a high gain of 18 dB, which allows for efficient signal amplification.
• High Efficiency: The transistor is designed to offer high efficiency, with a typical value of 35%, reducing overall power consumption and heat dissipation.
• Integrated ESD Protection: The built-in ESD protection enhances the durability and longevity of the device by safeguarding it against electrostatic discharges.

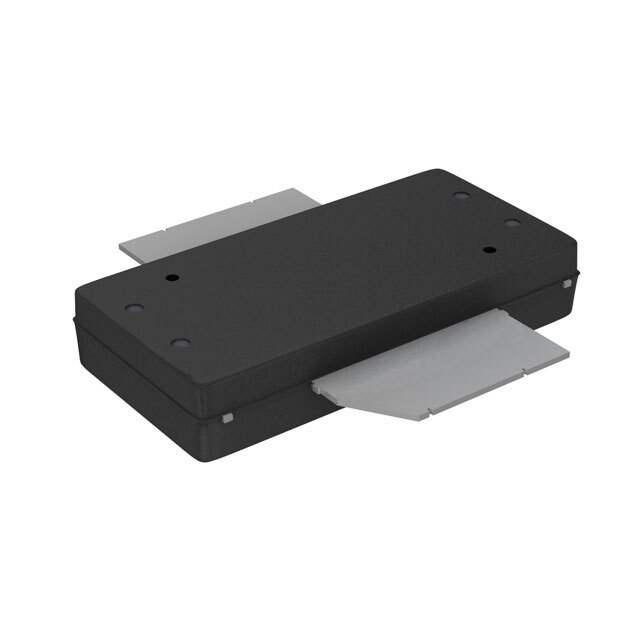

• Thermally Enhanced Package: Packaged in a NI-1230S-4 air cavity ceramic package, the MRF8S9200NR3 is designed for optimal thermal performance, ensuring stability under various operating conditions.

Applications

The versatility of the MRF8S9200NR3 makes it an ideal choice for various high-power RF applications. It is particularly well-suited for:

• Cellular base station amplifiers for GSM and CDMA technologies
• ISM applications, including industrial heating and welding
• RF plasma lighting
• Medical applications such as MRI and RF ablation
• Broadcast transmitters for radio and television

Conclusion

The MRF8S9200NR3 from NXP Semiconductors exemplifies cutting-edge RF power technology with its high power, efficiency, and gain. It is engineered to meet the stringent requirements of modern RF applications, providing designers with a reliable and robust power transistor solution.
