The NTS0101GF is a high-performance, dual bidirectional translating switch, designed by NXP Semiconductors to provide seamless voltage level translation for a wide variety of applications. It is particularly well-suited for situations where a low-voltage microcontroller needs to interface with high-voltage signals, making it an ideal choice for mixed-voltage systems.

Key Features

• Dual Supply Translating Transceiver: The NTS0101GF allows for translation between two different voltage domains, which can range from 1.65V to 3.6V on the A side (V<sub>CCA) and 2.3V to 5.5V on the B side (V<sub>CCB).
• High-Speed Operation: With a maximum data rate of 24 Mbps, it is capable of supporting high-speed signal transmission without compromising signal integrity.
• Low Standby Current: The device is designed for energy efficiency, with an ultra-low standby current that minimizes power consumption when not actively translating signals.
• Auto Direction Sensing: The NTS0101GF automatically senses the direction of data flow, which simplifies PCB design and reduces the need for additional control lines.
• ESD Protection: It includes electrostatic discharge (ESD) protection circuitry on all pins, which helps to safeguard the device against static damage during handling and operation.
• Latch-Up Performance: The device exceeds 100 mA in accordance with the JESD 78 Class II level B standard, providing robustness against latch-up phenomena.

Applications

The NTS0101GF is highly versatile and can be used in a range of applications, including but not limited to:

• Mobile Devices
• Computing Devices
• Consumer Electronics
• Data Communication Systems
• Signal Level Translation for Mixed-Voltage Systems

Package and Quality

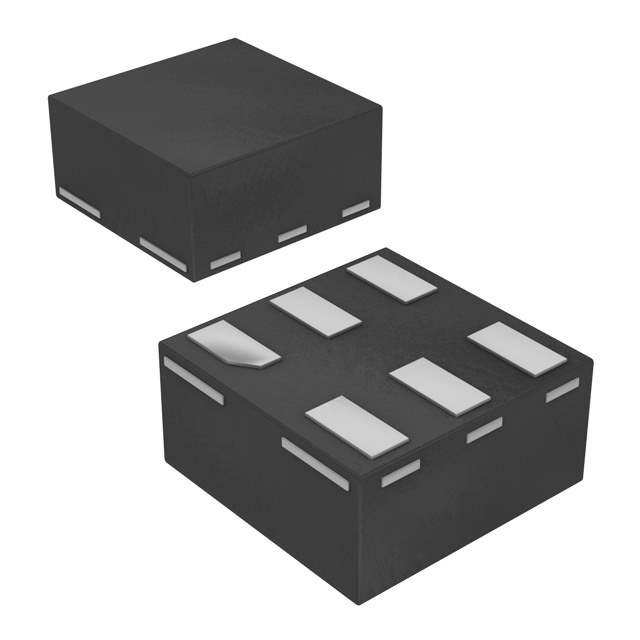

The device is offered in a leadless XSON8 package, which is not only space-saving but also suitable for high-density mounting on PCBs. NXP's commitment to quality ensures that the NTS0101GF meets stringent industry standards for performance and reliability, making it a reliable choice for designers and engineers seeking a dependable voltage level translation solution.
