The PCF8576CTT/1,118 is a versatile, high-performance Universal LCD driver, designed and manufactured by NXP Semiconductors. This chip is specially engineered to drive dot matrix liquid crystal displays (LCDs) with low multiplex rates. It is an ideal choice for a wide range of applications such as automotive, industrial controls, and consumer electronics where a reliable and efficient visual display is required.

Key Features

• Extended Display Capability: The device is capable of controlling up to 24 segments and supports up to 4 backplanes, enabling it to drive an LCD of up to 96 segments.
• Low Power Consumption: Designed with power efficiency in mind, it operates with a very low current in standby mode, making it suitable for battery-operated devices.
• I²C-Bus Interface: The inclusion of an I²C-bus interface ensures easy integration into most microcontroller-based systems, providing a simple and effective way to communicate with the LCD driver.
• Multiple Display Modes: It supports a variety of LCD display modes including static, duplex, triplex, and quadruplex, offering flexibility for different types of LCD panel designs.
• Software Control: Brightness, blinking, and mapping of the segments can be controlled through software, providing a high level of customization for the user interface.

Applications

The PCF8576CTT/1,118 is suitable for a broad spectrum of applications, including:

• Automotive dashboards and control panels
• Industrial machine displays
• Medical equipment
• Home appliances
• Portable instruments

Technical Specifications

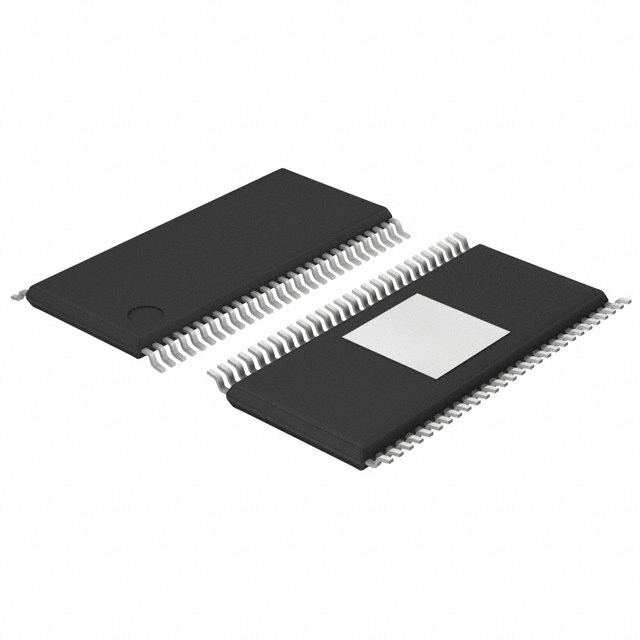

With a supply voltage range of 2.5V to 6V, the PCF8576CTT/1,118 is flexible for use in various system designs. It operates over a wide temperature range, ensuring reliability and performance under varying environmental conditions. The device is available in a TSSOP56 package, providing a compact footprint for space-constrained applications.

Ordering and Packaging

The PCF8576CTT/1,118 is sold in tape and reel packaging, facilitating easy handling and manufacturing integration. The product's orderable part number is PCF8576CTT/1,118, ensuring accuracy when placing orders.
