The PH3330L is a high-performance, low-voltage MOSFET produced by NXP Semiconductors, a renowned leader in the electronics industry. This product is designed to deliver efficient power management and conversion in a wide range of applications. With its compact footprint and robust construction, the PH3330L is an ideal choice for space-constrained and power-sensitive designs.

Key Features

• Low Threshold Voltage: The device operates at a low threshold voltage, which ensures low conduction losses and enhances overall efficiency, particularly in low-voltage applications.
• High-Speed Switching: The PH3330L MOSFET is optimized for fast switching, making it suitable for high-frequency power converters and other applications requiring rapid on-off cycles.
• Low On-Resistance: Its low RDS(on) minimizes power loss and heat generation, thus supporting cooler and more reliable operation over extended periods.
• Enhanced Durability: The MOSFET is built to withstand high energy pulses in the avalanche and commutation modes, which contributes to its durability and long-term reliability.

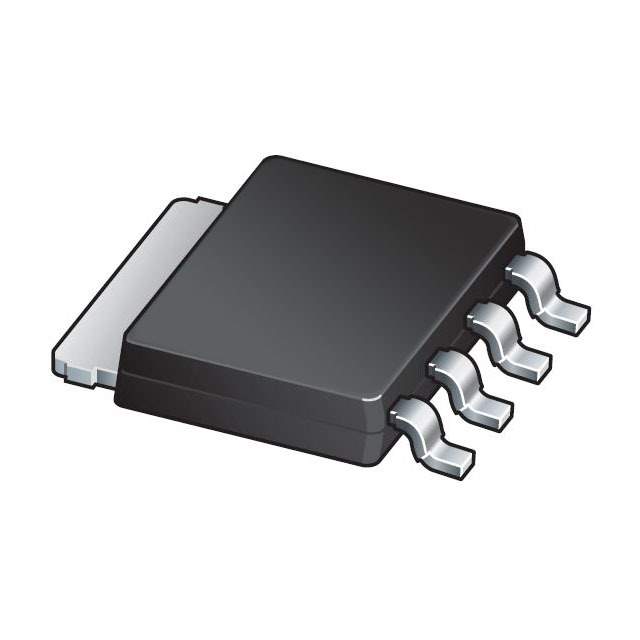

• Surface-Mount Package: The component comes in a surface-mount package that allows for automated assembly processes, which can help reduce manufacturing costs and time.

Applications

The versatility of the PH3330L MOSFET makes it suitable for a broad spectrum of applications, including:

• DC/DC converters
• Power management systems
• Motor control circuits
• Switching regulators
• Battery-powered devices
• Load switches

Technical Specifications

Parameter Value Drain-source voltage (V<sub>DS) 30 V Gate-source voltage (V<sub>GS) ±20 V Continuous drain current (I<sub>D) 100 A Power dissipation (P<sub>D) 43 W Operating temperature range -55°C to +175°C

With its exceptional performance and reliability, the NXP PH3330L MOSFET is an excellent component for designers looking to optimize their power-sensitive applications.
