NXP PMBT3906 PNP Bipolar Transistor

The NXP PMBT3906 is a PNP bipolar junction transistor (BJT) designed for general-purpose switching and amplification applications. This versatile transistor is part of NXP's portfolio of low-voltage, low-current devices, and it is particularly suited for portable and low-power applications due to its compact size and efficient performance.

Key Features:

• Transistor Polarity: PNP - This indicates that the PMBT3906 uses holes as its majority charge carriers, making it suitable for use in the negative side of circuits.
• Collector-Emitter Voltage (Vceo): 40V - The maximum voltage that can be safely applied from the collector to the emitter with the base open.
• Collector Current (Ic): 200mA - The maximum continuous current that can flow through the collector of the transistor.
• Power Dissipation (Pd): 300mW - The amount of power that the PMBT3906 can dissipate without exceeding its maximum operating temperature.
• DC Current Gain (hFE): 100 to 300 - A measure of the amplification capability of the transistor, indicating how much the collector current is amplified relative to the base current.
• Operating Temperature Range: -65°C to +150°C - The range of ambient temperatures over which the device can operate reliably.

Applications:

The PMBT3906 is ideal for a wide variety of general-purpose applications, including but not limited to:

• Signal processing
• Audio amplifiers
• Switching circuits
• Linear amplification
• Power management functions

Package and Quality:

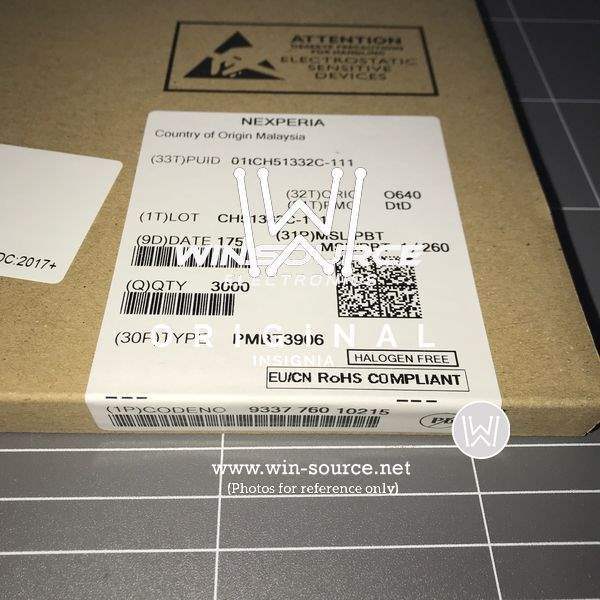

The NXP PMBT3906 comes in a small SOT-23 surface-mount package, which is widely used in the industry and is known for its space-saving footprint. This packaging makes it an excellent choice for densely populated PCBs where space is at a premium. Additionally, NXP's commitment to quality ensures that this transistor meets stringent industry standards for performance and reliability.
