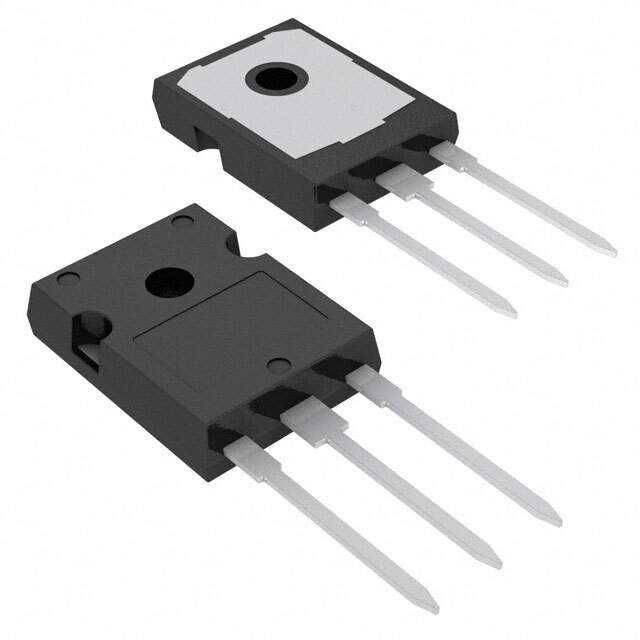

The PSMN009-100W is a high-performance, N-channel enhancement-mode Power MOSFET produced by the renowned semiconductor manufacturer, NXP Semiconductors. This power transistor is designed to deliver efficiency and reliability for a wide range of applications, including switching and amplification in power management circuits.

Key Features:

• Low On-Resistance: The PSMN009-100W boasts an exceptionally low on-state resistance (R<sub>DS(on)), which minimizes conduction losses and improves overall efficiency in high-current applications.
• High Current Capability: This device is capable of handling high continuous drain currents, making it suitable for demanding power conversion and regulation tasks.
• 100V Drain-Source Voltage: With a maximum drain-source voltage (V<sub>DS) of 100V, the PSMN009-100W can be used in circuits with higher operating voltages, providing greater flexibility in system design.
• Fast Switching Speed: The MOSFET's fast switching characteristics enable high-frequency operation, which is essential for efficient power converters and inverters.
• Low Gate Charge: A reduced gate charge (Q<sub>G) allows for lower switching losses and easier driveability, which can simplify the design of driving circuits and reduce overall system cost.
• Robust Thermal Performance: With an excellent thermal design, the PSMN009-100W ensures reliable operation even under high temperature conditions, extending the lifespan of the device and the systems it powers.

Applications:

The versatility of the PSMN009-100W MOSFET makes it ideal for a variety of applications, including:

• DC-DC Converters
• Motor Drives
• Power Supplies
• Battery Management Systems
• Automotive Electronics
• Switch Mode Power Supplies (SMPS)

Quality and Reliability:

NXP Semiconductors is committed to delivering high-quality products. The PSMN009-100W is manufactured with state-of-the-art technology, ensuring that each component meets rigorous standards for performance and reliability. Whether for industrial, commercial, or automotive applications, this MOSFET is designed to provide a dependable solution for power control and management challenges.
