Product Overview: SPC5646CCF0MLT1 Microcontroller

The SPC5646CCF0MLT1 is a cutting-edge microcontroller unit (MCU) from NXP Semiconductors, designed for the automotive market. It is part of the MPC56xx family of microcontrollers that are engineered to meet the rigorous standards of automotive applications, offering a blend of performance, reliability, and versatility.

Key Features

• Core: The SPC5646CCF0MLT1 is built around a dual-core Power Architecture with cores operating at up to 120 MHz, providing robust computational power and efficiency for handling complex tasks.
• Memory: It comes equipped with 2MB of flash memory and 192KB of RAM, ensuring ample space for program code and data storage.
• Timers and Communication Interfaces: This MCU includes a rich set of peripherals such as multiple timers, CAN interfaces, LIN interfaces, and a FlexRay controller, making it highly suitable for networking and communication tasks within a vehicle.
• Analog-to-Digital Converters (ADCs): It features multiple 12-bit ADCs, providing accurate analog signal measurement capabilities which are essential for sensor data processing.
• Enhanced Safety Features: Safety is paramount in automotive applications, and the SPC5646CCF0MLT1 addresses this with its built-in Error Correction Code (ECC) on both flash and RAM, as well as a Memory Protection Unit (MPU) for improved reliability.

Applications

The SPC5646CCF0MLT1 is designed for a wide range of automotive applications, including engine management, transmission control, chassis control, driver assistance systems, and body electronics. Its robust feature set also makes it suitable for industrial and aerospace applications where high reliability and performance are required.

Quality and Reliability

NXP's commitment to quality ensures that the SPC5646CCF0MLT1 MCU meets the stringent requirements of the automotive industry. It is designed to operate in harsh environments and is qualified under AEC-Q100 standards, which guarantee its performance under extreme temperatures and conditions.

Package and Availability

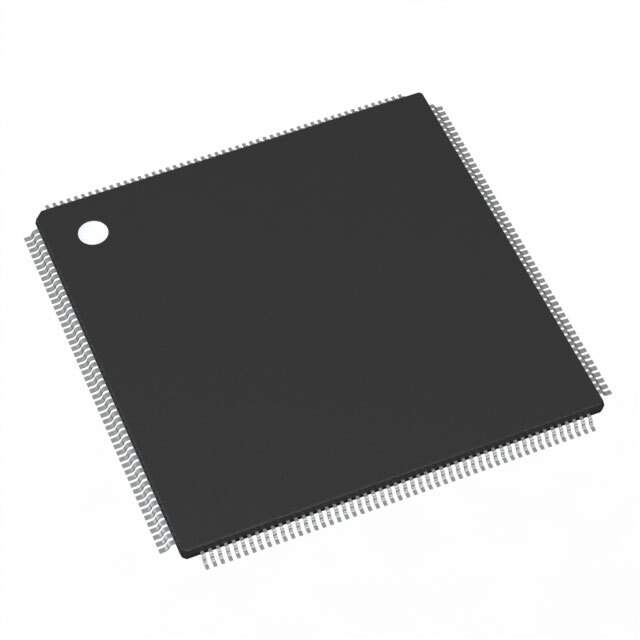

The SPC5646CCF0MLT1 is available in a 176-pin LQFP package, offering a compact footprint for space-constrained applications. Its lead-free design aligns with modern environmental standards, reducing the impact on the environment.
