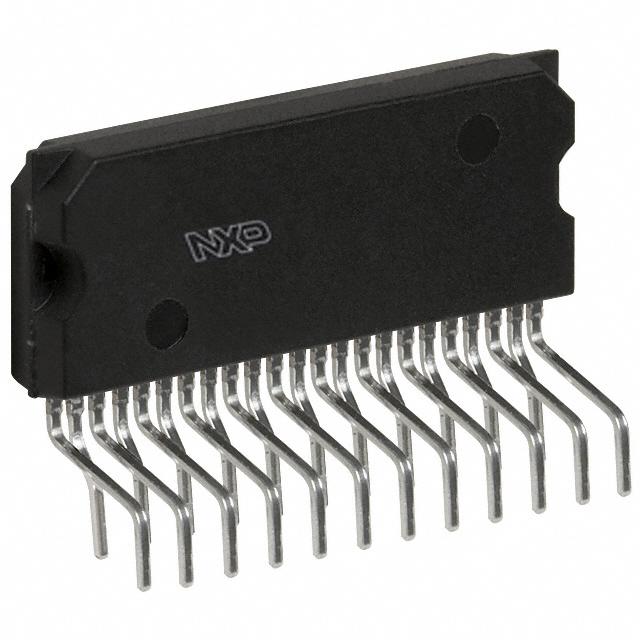

The NXP TDA8922BJ/N2,112 is a high-efficiency, Class-D audio power amplifier in a 23-lead DIL-bent-SIL power package. This robust component is designed to deliver high-quality sound while maintaining energy efficiency, making it an ideal solution for a wide range of audio applications.

Key Features

• High Output Power: With its ability to deliver up to 2 x 100 W into a 4 Ω load, the TDA8922BJ/N2,112 can power large speakers with ease, providing loud and clear audio output.
• Class-D Operation: The Class-D architecture offers high efficiency, which results in a cooler running amplifier and extended longevity of the product.
• Low THD+N: Total Harmonic Distortion plus Noise (THD+N) is kept to a minimum, ensuring high-fidelity sound reproduction that's true to the original recording.
• Zero Dead Time Switching: The amplifier employs zero dead time switching to minimize distortion and optimize sound quality.
• Differential Inputs: Differential input structures provide improved noise immunity and help to reduce the potential for system hum and buzz.
• Advanced Protection: Features such as short-circuit protection, thermal protection, and a no-switching mode safeguard the amplifier and connected equipment from damage.

Applications

The TDA8922BJ/N2,112 is versatile and can be used in a variety of audio applications including but not limited to:

• Home theater systems
• Active speakers
• Professional sound systems
• Mini and micro audio systems

Technical Specifications

• Product: Audio Amplifiers
• Type: Class D
• Output Power: 2 x 100 W
• Load Impedance: 4 Ω
• Package / Case: DBS23P
• Mounting Style: Through Hole
• Supply Voltage: 12.5 V to 36 V
• Operating Temperature Range: -40°C to +85°C

Whether you're designing a state-of-the-art home audio system or a professional-grade sound setup, the NXP TDA8922BJ/N2,112 offers the performance, efficiency, and reliability needed for top-quality audio experiences.
