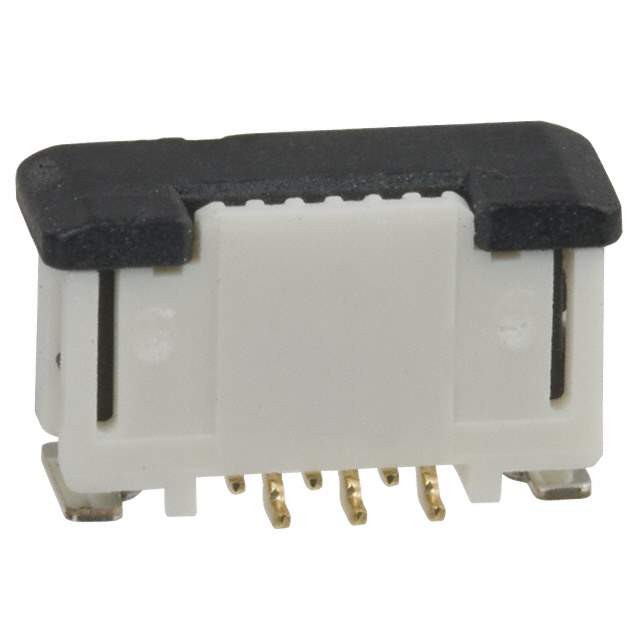

XF2J-1624-11A-R100

Part No XF2J-1624-11A-R100
Manufacturer Omron
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC VERT 16POS 0.50MM SMD / 16 Position FPC Connector Contacts, Vertical - 1 Sided 0.020" (0.50mm) Surface Mount
Datasheet
XF2J-1624-11A-R100 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr Omron Electronics Inc-EMC Div
Series XF2J
Package Bulk
Product Status Obsolete
Flat Flex Type FPC
Mounting SMD (SMT)
Connector/Contact Type Contacts, Vertical - 1 Sided
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.163" (4.15mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Copper Alloy
Contact Finish Gold
Housing Material Polyamide (PA46), Nylon 4/6
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -30°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 5.90µin (0.150µm)
Housing Color Natural
Actuator Color Black
Mating Cycles 30
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.69.4051
Other Names XF2J-1624-11A-R100 BY OMZ,XF2J-1624-11A-R100 BYOMZ,XF2J162411AR100,XF2J162411AR100BYOMZ
Standard Package 100
Win Source Part Number 1178575-XF2J-1624-11A-R100
Ultra Librarian 3D Model Ultra Librarian XF2J-1624-11A-R100 CAD Model

Description

The Omron XF2J-1624-11A-R100 is a connector component that belongs to the category of FFC, FPC (Flat Flexible) Connectors.

  • Series: XF2J
  • Pitch: 0.020" (0.50mm)
  • Number of Positions: 16
  • Feature: Zero Insertion Force (ZIF)
  • Termination: Solder
  • Contact Finish: Gold
  • Voltage Rating: 50V
  • Height Above Board: 0.163" (4.15mm)
  • Housing Material: Polyamide (PA46), nylon 4/6
  • Operating Temperature: -30°C ~ 85°C
  • Manufacturer: Omron
