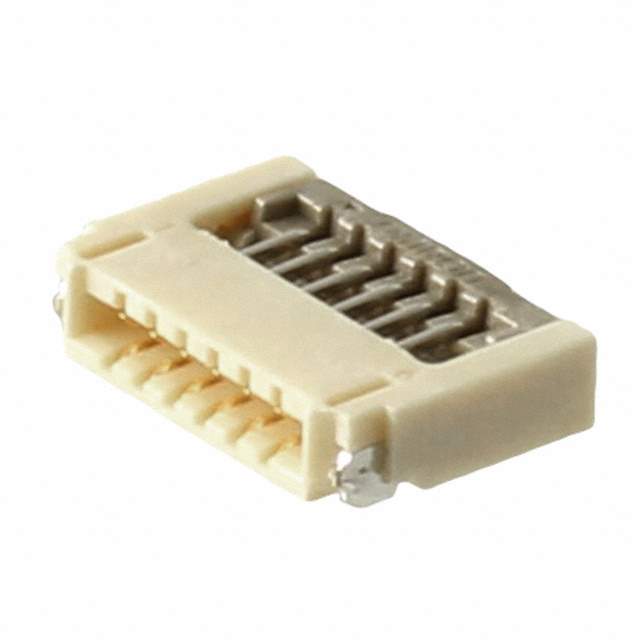

Same model may have multiple batches, images only for reference.

XF2W-0615-1A

Name: XF2W-0615-1A
Brand: Omron
SKU: 1351562
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	XF2W-0615-1A
Manufacturer	Omron
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FPC 6POS 0.5MM R/A / 6 Position FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State	Need to verify
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - FFC, FPC (Flat Flexible) Connectors - FFC, FPC (Flat Flexible) Connector Assemblies
Mfr	Omron Electronics Inc-EMC Div
Series	XF2W
Package	Tape & Reel
Product Status	Obsolete
Flat Flex Type	FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	6
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.044" (1.12mm)
Locking Feature	Rotary Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP) , Halogen Free
Actuator Material	Liquid Crystal Polymer (LCP) , Halogen Free
Voltage Rating	50V
Temperature Range - Operating	-30°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A
Contact Finish Thickness	5.90µin (0.150µm)
Housing Color	Natural
Actuator Color	Brown
Mating Cycles	20
Standard Package	2,000
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Win Source Part Number	1351562-XF2W-0615-1A
Ultra Librarian 3D Model	Ultra Librarian XF2W-0615-1A CAD Model

Description

The 1351562-XF2W-0615-1A from Omron Electronics Inc-EMC Div is a 6-position FFC, FPC (Flat Flexible) Connector Assembly.

Number of Positions: 6
Pitch: 0.020" (0.50mm)
Termination Style: Solder
Contact Finish: Gold
Contact Finish Thickness: 5.90µin (0.150µm)
Voltage Rating: 50V
Current Rating: 0.5A
Material: Liquid Crystal Polymer (LCP)
Halogen Free: Yes
Locking Feature: Rotary Lock and Backlock
Cable End Type: Tapered
Housing Color: Natural
