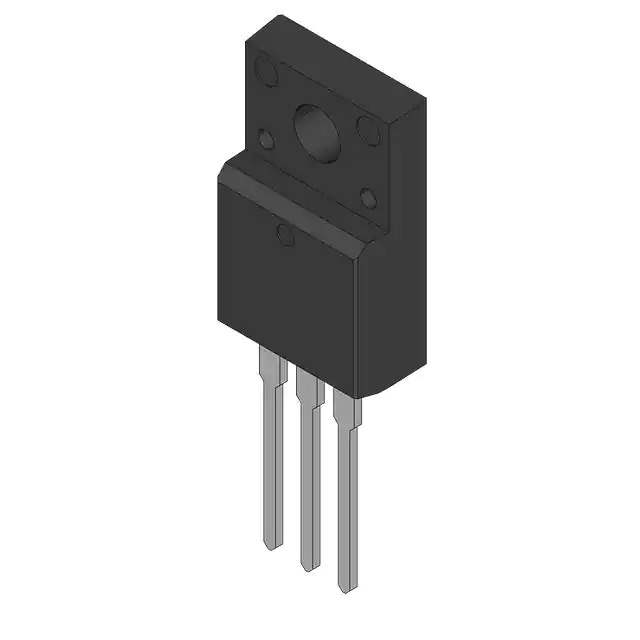

The 2SA1470S is a high-performance PNP bipolar junction transistor (BJT) designed and manufactured by ON Semiconductor, a leader in energy-efficient innovations. This semiconductor device is tailored for use in various amplification and switching applications, offering a harmonious blend of efficiency and reliability.

Key Features

• Voltage Ratings: It boasts a collector-base voltage (VCBO) of -50V, a collector-emitter voltage (VCEO) of -50V, and an emitter-base voltage (VEBO) of -5V, making it suitable for medium voltage operations.
• Current Capacity: With a continuous collector current (IC) of -2A, the 2SA1470S can handle substantial current loads for a wide array of electronic circuits.
• Power Dissipation: This transistor has a power dissipation (PD) of 2W, which ensures that it can sustain moderate levels of power without overheating.
• Gain Bandwidth Product (fT): Featuring a transition frequency of 120MHz, this component is capable of high-frequency operation, which is essential for applications like signal amplification.
• High DC Current Gain (hFE): The device has a high DC current gain, ranging from 100 to 320, allowing for significant amplification of the input signal.

Applications

The 2SA1470S is versatile and can be utilized in a variety of electronic applications including, but not limited to:

• Audio frequency amplifier stages
• Signal processing circuits
• Power management systems
• Switching regulators
• Driver stages in hi-fi amplifiers and television circuits

Quality and Reliability

ON Semiconductor is committed to the highest standards of quality and reliability, and the 2SA1470S is no exception. It is designed to meet rigorous industry specifications, ensuring performance and durability in even the most demanding conditions. The device is also RoHS compliant, reflecting ON Semiconductor's dedication to environmental responsibility.

Conclusion

In summary, the 2SA1470S PNP transistor from ON Semiconductor represents a robust solution for designers seeking a dependable component that delivers consistent performance. Its combination of voltage handling, current capacity, and high-frequency response makes it a go-to choice for a multitude of electronic applications.
