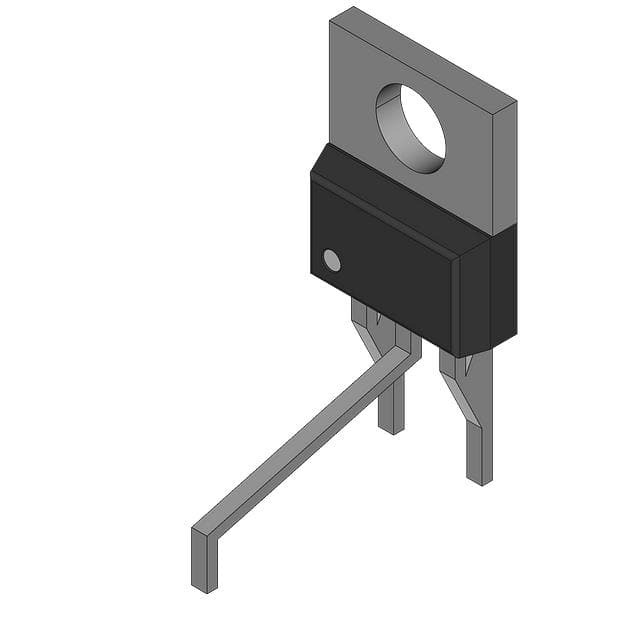

The 2SB986T from ON Semiconductor is a high-performance PNP bipolar transistor designed for use in a wide range of electronic applications. This device is well-suited for power amplification and switching applications, offering a robust solution for designers looking to optimize their circuitry for efficiency and reliability.

Key Features

• High Current Capacity: The 2SB986T is capable of handling high levels of current, making it ideal for applications that require significant power handling capabilities.
• Low Saturation Voltage: This transistor is designed to operate with a low saturation voltage, reducing power loss and improving overall efficiency in electronic circuits.
• Fast Switching Speeds: With its quick switching capabilities, the 2SB986T can transition between on and off states efficiently, which is crucial for applications where timing is critical.
• High Power Dissipation: The device's ability to dissipate heat effectively allows it to manage power at higher levels, extending the operational life of the product.

Applications

The versatility of the 2SB986T makes it suitable for a variety of applications, including but not limited to:

• Power supply circuits
• Audio amplifiers
• Motor controllers
• Switching regulators
• Driver stages in high-fidelity amplifiers and sound systems

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the 2SB986T is no exception. Manufactured with state-of-the-art technology, this transistor meets stringent industry standards for performance and reliability. It is designed to withstand the rigors of everyday use in commercial and industrial environments.

Technical Specifications

Some of the key technical specifications of the 2SB986T include a collector-base voltage (VCBO) of -120V, a collector-emitter voltage (VCEO) of -80V, and a collector current (IC) of -1A. The device also features a low collector-emitter saturation voltage and high current gain bandwidth product (fT), further enhancing its performance in demanding applications.

For detailed information on the 2SB986T, including full datasheets, application notes, and design resources, visit ON Semiconductor's official website or contact your local ON Semiconductor sales representative.
