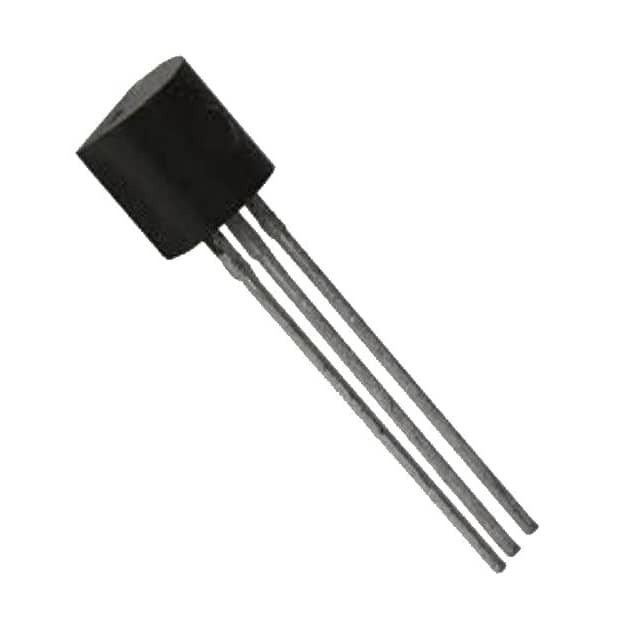

ON Semiconductor 2SC3400-AC NPN Transistor

The ON Semiconductor 2SC3400-AC is a high-quality NPN transistor that offers excellent performance for a wide range of electronic applications. This versatile component is designed to cater to the demanding needs of modern circuit designs, providing reliable switching and amplification functionalities.

Key Features:

• High Current Gain Bandwidth Product: The 2SC3400-AC boasts a high transition frequency, making it suitable for applications requiring fast switching and accurate amplification at high frequencies.
• Low Saturation Voltage: This transistor has a low V<sub>CE(sat), which means it requires less voltage to saturate, leading to improved power efficiency and reduced heat dissipation.
• High Power Dissipation: With its ability to dissipate high levels of power, the 2SC3400-AC can handle higher currents and voltages, making it ideal for power applications.
• Robust Thermal Performance: The device is designed to operate reliably over a wide temperature range, ensuring consistent performance even under thermal stress.

Applications:

The 2SC3400-AC is commonly used in a variety of applications, including but not limited to:

• Audio frequency amplifier circuits
• Signal processing
• Driver stages in hi-fi amplifiers and television circuits
• Switching regulators
• Power management functions

Product Specifications:

Parameter Value Collector-Emitter Voltage (V<sub>CEO) 120V Collector-Base Voltage (V<sub>CBO) 200V Emitter-Base Voltage (V<sub>EBO) 5V Collector Current (I<sub>C) 50mA Power Dissipation (P<sub>D) 400mW Transition Frequency (f<sub>T) 250MHz

Overall, the ON Semiconductor 2SC3400-AC NPN transistor is a reliable and efficient choice for designers looking to improve the performance and efficiency of their electronic circuits.
