ON Semiconductor BC846BDW1T1 Bipolar Transistor

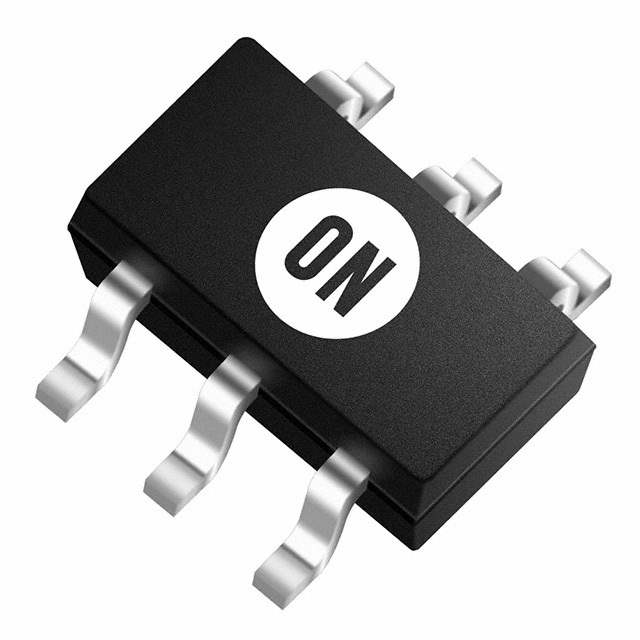

The ON Semiconductor BC846BDW1T1 is a high-performance, dual NPN bipolar junction transistor (BJT) designed for use in a wide range of electronic applications. This device is housed in a compact SOT-363 package, making it ideal for space-constrained applications where small size and low weight are critical.

The BC846BDW1T1 features two independent NPN transistors that can be used in various configurations, including digital and analog circuits. It is well-suited for applications requiring high-speed switching and amplification, such as signal processing, power management, and other general-purpose uses in consumer, industrial, and telecommunication products.

Key specifications of the BC846BDW1T1 include a collector-emitter voltage (V_CEO) of 65V, a collector-base voltage (V_CBO) of 80V, and a emitter-base voltage (V_EBO) of 6V. The device is capable of handling collector currents up to 100mA, making it suitable for driving medium-power loads. Its transition frequency (f_T) is specified at 100MHz, which provides excellent performance in high-frequency applications.

The transistor also features low collector-emitter saturation voltage (V_CE(sat)), which helps to reduce power dissipation and improve efficiency. With a low base-emitter on voltage, it ensures minimal voltage drop across the transistor when in operation, contributing to its high efficiency.

ON Semiconductor has designed the BC846BDW1T1 with reliability in mind, ensuring it meets the stringent requirements for commercial-grade components. The device is also characterized for operation from -55°C to +150°C, making it robust enough to withstand extreme environmental conditions.

Overall, the BC846BDW1T1 from ON Semiconductor is a versatile and reliable choice for designers looking for a dual NPN transistor solution. Its compact form factor, combined with its electrical performance and thermal characteristics, makes it a valuable component in a diverse array of electronic circuits.
