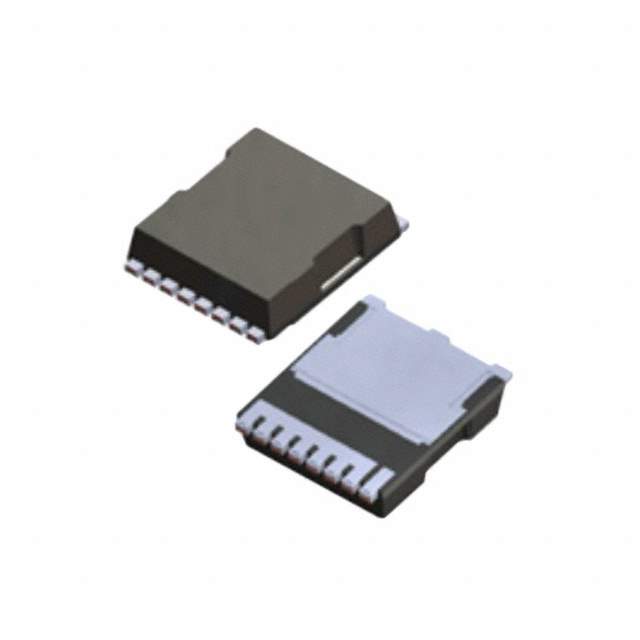

ON Semiconductor FDBL86361-F085 N-Channel PowerTrench® MOSFET

The ON Semiconductor FDBL86361-F085 is a high-performance N-Channel PowerTrench® MOSFET designed for a wide range of applications that demand high efficiency and reliability. This state-of-the-art power MOSFET is a testament to ON Semiconductor's commitment to providing innovative solutions that meet the evolving needs of the electronics industry.

With its advanced PowerTrench® technology, the FDBL86361-F085 offers superior power density and lower on-resistance, resulting in highly efficient power conversion in a compact footprint. The device is optimized for synchronous rectification in Switch Mode Power Supplies (SMPS), which are commonly used in computer servers, telecom power supplies, and a variety of other energy-sensitive applications.

Key Features:

• 100V, 4.5mΩ max R_DS(on)
• High continuous drain current of 195A at 25°C
• Low gate charge (Q_g) and capacitance (C_iss) for fast switching
• High-performance PowerTrench® process technology
• Excellent thermal performance with a maximum junction temperature of 175°C
• RoHS compliant and Halogen-free

The FDBL86361-F085 also features a robust and rugged design, capable of withstanding high energy pulses in the avalanche and commutation modes. This ensures that the device is not only efficient but also reliable under harsh conditions, making it suitable for high-performance industrial and automotive applications. Moreover, its low profile and low thermal resistance contribute to better thermal management and can lead to a reduction in the overall system size due to the possibility of using smaller heatsinks.

Applications:

• DC-DC converters
• Synchronous rectification in SMPS
• Motor drives
• Power management solutions
• Battery powered circuits
• Load switch applications

The FDBL86361-F085 MOSFET by ON Semiconductor is a testament to the company's dedication to providing high-quality, durable, and efficient components for the electronic market. With its advanced features and robust design, it is an excellent choice for designers looking to enhance system performance while maintaining energy efficiency and reliability.
