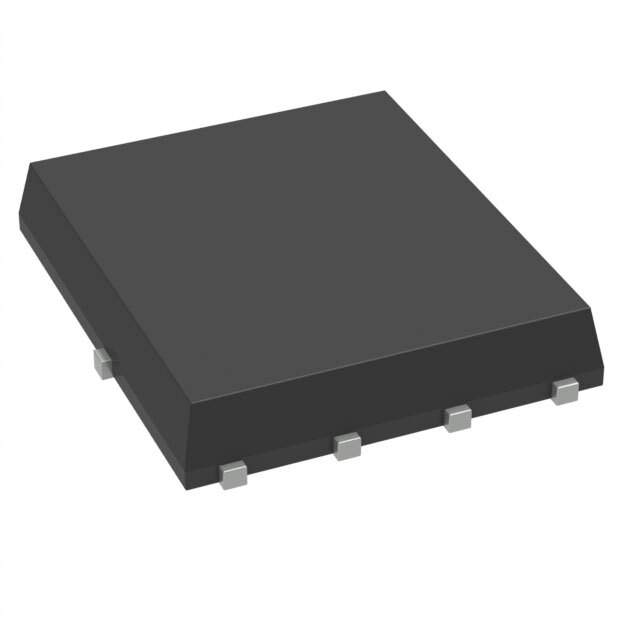

FDMS1D5N03

Part No FDMS1D5N03
Manufacturer ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET N-CH 30V 218A 8PQFN
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Features N-Channel 30 V 218A (Tc) 83W (Tc) Surface Mount 8-PQFN (5x6)
Manufacturer ON Semiconductor
Series PowerTrench®
Package Reel - TR
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Surface Mount
Package 8-PowerTDFN
Case / Package 8-PQFN (5x6)
Family Name FDMS1D5
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.29.0095
Other Part Number FDMS1D5N03CT, FDMS1D5N03TR, FDMS1D5N03DKR
Quantity per package 3000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 919034-FDMS1D5N03
Ultra Librarian 3D Model Ultra Librarian FDMS1D5N03 CAD Model

Description

The FDMS1D5N03 is a state-of-the-art PowerTrench® MOSFET manufactured by ON Semiconductor, designed for a wide range of applications requiring high efficiency and power density. This MOSFET is a part of ON Semiconductor's extensive portfolio of power management devices, showcasing the company's commitment to providing innovative solutions for modern electronic challenges.

Key Features

  • Low R<sub>DS(on): The device boasts a low on-resistance, which translates to reduced conduction losses and improved power efficiency, making it ideal for high-performance power switching applications.
  • High Power Density: Thanks to its PowerTrench® technology, the FDMS1D5N03 achieves a higher power density, enabling compact designs without sacrificing performance.
  • Optimized Gate Charge: The MOSFET features an optimized gate charge (Qg), which improves the switching performance and further reduces power losses during operation.
  • Low Profile: The device comes in a low-profile, space-saving 8-lead Power 56 package, suitable for slim and compact circuit designs.
  • Thermal Management: Excellent thermal characteristics ensure reliability and longevity even under high-temperature operating conditions.

Applications

The FDMS1D5N03 is versatile and can be used in a variety of applications, including:

  • DC/DC converters
  • Motor drives
  • Power management systems
  • Battery management systems
  • Computing and server power supplies

Technical Specifications

Parameter Value Drain-to-Source Voltage (V<sub>DSS) 30V Continuous Drain Current (I<sub>D) 25A Power Dissipation (P<sub>D) 3.1W Operating Temperature Range -55°C to +150°C

In conclusion, the FDMS1D5N03 from ON Semiconductor is a robust and efficient solution for designers looking to enhance power management in their electronic devices. With its advanced technology and compact form factor, it provides an excellent choice for a wide range of high-efficiency applications.
