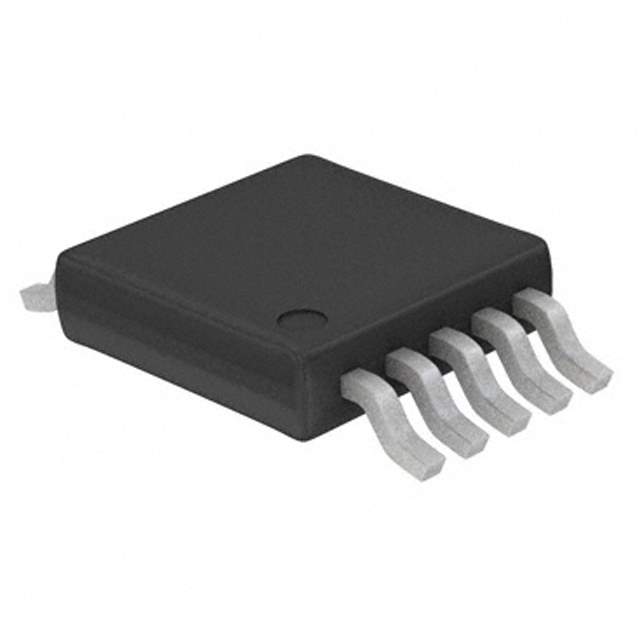

ON Semiconductor LA6586FA-BH Motor Driver IC

The ON Semiconductor LA6586FA-BH is a high-performance motor driver IC designed for precision control of bipolar stepping motors. This integrated circuit is specifically engineered to cater to the needs of advanced industrial applications that require accurate and efficient motor operations. With its compact form factor and robust feature set, the LA6586FA-BH is an ideal solution for a wide range of applications, including robotics, automation, CNC machines, and 3D printers.

Key Features

• Integrated Dual H-Bridges: The LA6586FA-BH contains two H-bridge drivers capable of driving a two-phase bipolar stepper motor, which allows for full, half, quarter, and eighth step modes for precise motor control.
• High Voltage and Current Ratings: This motor driver can handle operating voltages up to 46V and output currents up to 2A, making it suitable for driving a wide range of stepper motors.
• Thermal Shutdown Feature: With built-in thermal shutdown circuitry, the LA6586FA-BH ensures protection against overheating, enhancing the longevity and reliability of the motor and the driver.
• Low ON-Resistance: The low ON-resistance of the output stage ensures higher efficiency and lower heat generation during operation.
• Under Voltage Lock Out (UVLO): This feature prevents the motor from operating at low inefficient voltages, which could otherwise lead to erratic motor behavior and potential damage.
• Cross-Conduction Protection: The LA6586FA-BH includes circuitry to prevent shoot-through current, which can occur if both high-side and low-side transistors are on simultaneously.

Applications

The LA6586FA-BH's versatility and high performance make it suitable for a variety of demanding applications. It is commonly used in:

• Automated equipment and robotics
• Precision motion control systems
• Computer Numerical Control (CNC) machines
• 3D printers and plotters
• Office automation machines

With its robust design and advanced features, the ON Semiconductor LA6586FA-BH motor driver IC stands out as a superior choice for designers looking to enhance the performance and reliability of their stepper motor-driven applications.
