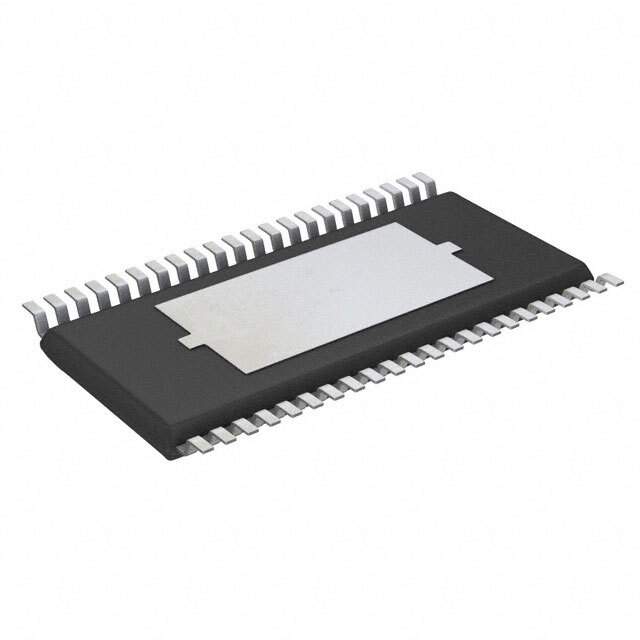

The LV8746V-MPB-E is a high-performance, dual-channel H-bridge driver IC manufactured by ON Semiconductor. Designed to efficiently control stepper motors and DC brush motors, this versatile component is an ideal solution for a wide range of applications in the industrial, automotive, and consumer electronics sectors. Its robust design and advanced features make it a preferred choice for engineers looking to drive motors with precision and reliability.

Key Features

• Dual H-Bridge Driver: Capable of driving two DC brush motors or one stepper motor, providing design flexibility.
• High Voltage and Current Rating: With an operating voltage range of 8V to 16V and output current capability of up to 3A (peak), it can handle a broad spectrum of motor specifications.
• Low RDS(on): The low on-resistance of the H-bridge outputs ensures efficient operation, leading to reduced power dissipation and improved thermal performance.
• Integrated Protections: Features such as overcurrent protection, thermal shutdown, and under-voltage lockout safeguard the IC and the motor from potential damage due to abnormal operating conditions.
• Control Flexibility: Supports various control methods, including PWM and forward/reverse control, providing users with versatile control over motor speed and direction.

Applications

The LV8746V-MPB-E is suited for a variety of applications, including:

• Office automation machines
• Home appliances
• Vending machines
• Gaming machines
• Factory automation equipment

Quality and Reliability

ON Semiconductor is known for its commitment to quality, and the LV8746V-MPB-E is no exception. It is built to meet high standards of performance and reliability, ensuring that it can withstand the rigors of real-world applications. Whether you are designing a new product or looking to upgrade an existing system, the LV8746V-MPB-E offers the performance and features necessary to drive your motor-control solutions successfully.
