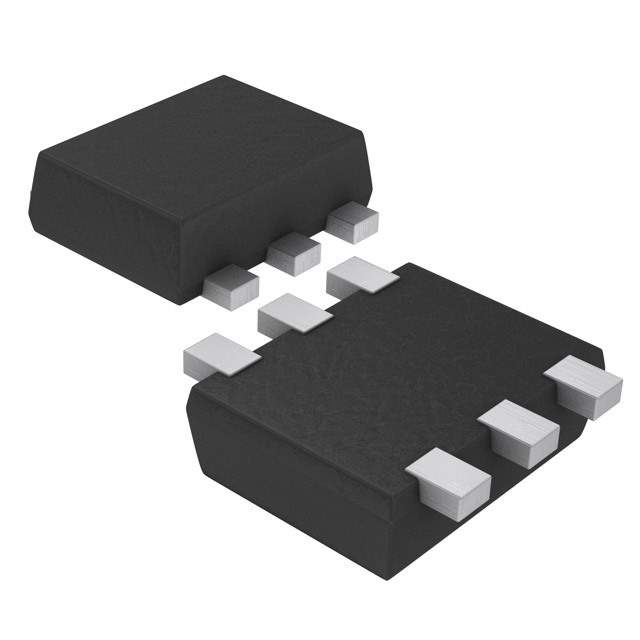

ON Semiconductor MCH6342-TL-W P-Channel MOSFET

The MCH6342-TL-W from ON Semiconductor is a high-performance P-Channel MOSFET designed to deliver efficient power management and control in a wide variety of applications. This MOSFET features a compact design, making it an ideal choice for space-constrained environments while providing robust performance characteristics that meet the demands of modern electronic circuits.

Key Features

• Low On-Resistance: The MCH6342-TL-W comes with a very low on-resistance, which means it has a minimal voltage drop when conducting and thus improves overall efficiency.
• High-Speed Switching: It is designed for fast switching applications, enabling high-speed operation for power conversion and regulation circuits.
• P-Channel Operation: As a P-Channel MOSFET, it is typically used in high-side switch configurations and can be easily driven by a positive gate voltage relative to the source.
• Small Package: The MOSFET is available in a compact SOT-23 package, which is suitable for use in portable devices where space is at a premium.
• High Reliability: ON Semiconductor's commitment to quality ensures that the MCH6342-TL-W MOSFET is reliable for long-term operation, even in demanding conditions.

Applications

The versatility of the MCH6342-TL-W allows it to be used in a variety of applications, including but not limited to:

• Power Management Circuits
• Load Switches
• Battery Management Systems
• DC-DC Converters
• Motor Control Circuits

Technical Specifications

• Drain-Source Voltage (V_DS): -20V
• Continuous Drain Current (I_D): -6A
• Power Dissipation (P_D): 1.5W
• Gate-Source Voltage (V_GS): ±12V
• Operating Temperature Range: -55°C to +150°C

With its superior switching capabilities, low power loss, and high reliability, the MCH6342-TL-W P-Channel MOSFET from ON Semiconductor is an excellent choice for designers looking to optimize their power management solutions.
