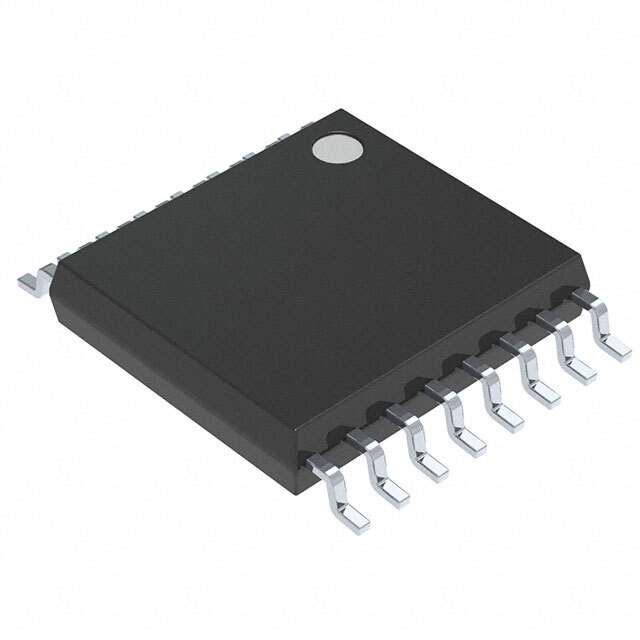

The ON Semiconductor NCP1095DBR2 is a cutting-edge interface controller designed to facilitate seamless and efficient communication within networking equipment. This advanced component is a part of ON Semiconductor's portfolio of high-performance integrated circuits, specifically tailored for the robust demands of modern network-powered devices.

Key Features

• IEEE 802.3bt Compliance: The NCP1095DBR2 adheres to the latest Power over Ethernet (PoE) standards, ensuring compatibility with the newest high-power devices and applications.
• Enhanced Power Capabilities: With support for up to 90W of power, this interface controller can manage the increased demands of devices such as wireless access points, security cameras, and VoIP phones.
• Integrated Diode Bridge: The built-in diode bridge rectifier allows for flexible implementation in systems where polarity reversal may occur, enhancing the ease of use and reliability.
• Programmable Classification: It offers programmable classification signatures which enable the device to communicate its power needs to the Power Sourcing Equipment (PSE).
• Advanced Thermal Management: The NCP1095DBR2 is equipped with thermal shutdown protection to prevent overheating, ensuring stable operation under various conditions.

Applications

The NCP1095DBR2 is ideal for a range of applications that require reliable power delivery over Ethernet cables. This includes but is not limited to:

• Network Cameras
• Wireless Access Points (WAPs)
• VoIP Phones
• Point of Sale (PoS) Systems
• Industrial Automation Systems

Product Specifications

Parameter Value Part Number NCP1095DBR2 Standard Compliance IEEE 802.3bt Maximum Power Up to 90W Package SOIC-8 Operating Temperature -40°C to +85°C

With its robust feature set and compliance with the latest PoE standards, the ON Semiconductor NCP1095DBR2 is an excellent choice for designers looking to integrate reliable power management into their networked devices.
