ON Semiconductor NCP4680DMX15TCG: High Precision, Low Dropout Voltage Regulator

The ON Semiconductor NCP4680DMX15TCG is a state-of-the-art low dropout (LDO) voltage regulator that offers a high level of precision and robust performance for a wide range of applications. This compact, surface-mount component is designed to maintain a stable output voltage even under conditions of varying input voltage and load, making it an ideal choice for sensitive electronics that require a consistent power supply.

Key Features

• Output Voltage: The NCP4680DMX15TCG provides a fixed output voltage of 1.5V, which is suitable for low-voltage applications in modern electronic devices.
• High Accuracy: With an impressive accuracy of ±1%, this LDO ensures that the output voltage remains within a tight range, minimizing the risk of device malfunction or damage due to power instability.
• Low Dropout: The low dropout feature of this voltage regulator means it can maintain output regulation with a minimal difference between the input and output voltages, as low as 165 mV at 150 mA load. This characteristic is particularly beneficial in battery-operated devices where maximizing the usage of available battery voltage is crucial.
• Current Capacity: It can deliver up to 150 mA of continuous output current, making it suitable for a variety of low-power applications.
• Thermal Protection: The device includes thermal shutdown protection, which helps to prevent overheating and potential damage to both the regulator and the device it powers.
• Noise Performance: It exhibits low output noise, making it an excellent choice for RF and precision analog circuits that require a quiet power supply.

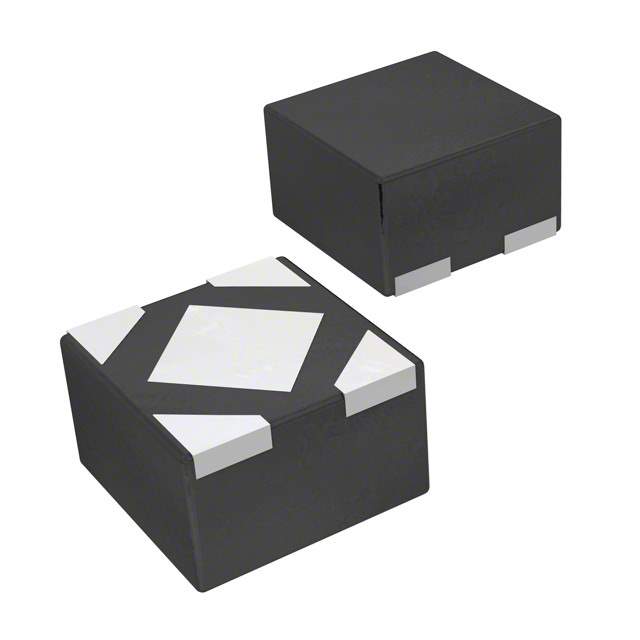

• Package: The NCP4680DMX15TCG comes in a compact DFN6 (1.2mm x 1.2mm) package, allowing for high-density PCB layouts and space-saving designs.

Applications

The versatility and reliability of the NCP4680DMX15TCG make it an excellent choice for a broad spectrum of applications, including but not limited to:

• Portable and battery-powered devices
• Wireless communication systems
• Handheld consumer electronics
• Medical devices
• IoT devices
• Microcontroller power supplies

In summary, the ON Semiconductor NCP4680DMX15TCG is a high-performance LDO voltage regulator that offers precision, low dropout, and thermal protection, making it an indispensable component for ensuring stable power in critical electronic circuits.
