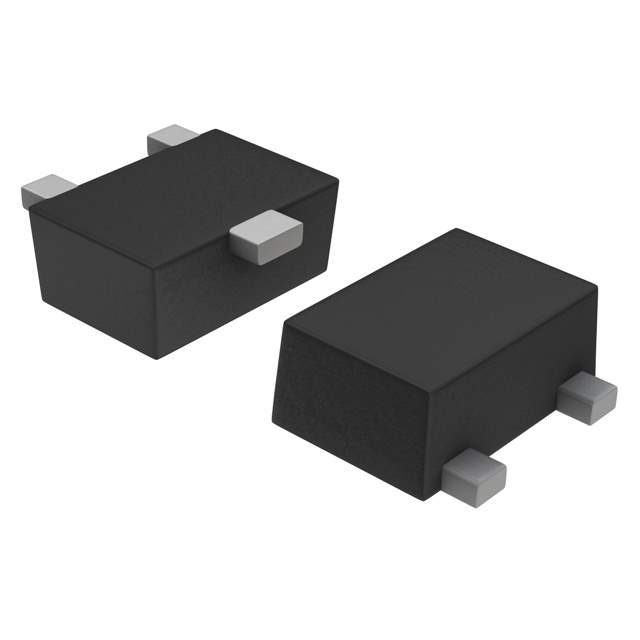

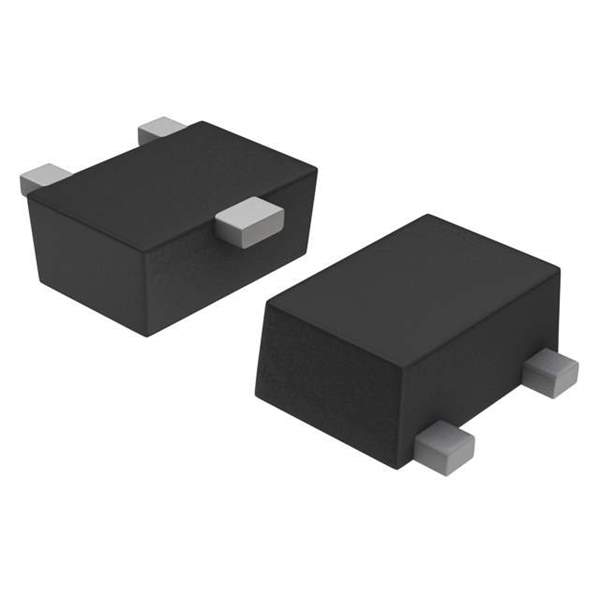

NTK3139PT5G

Part No NTK3139PT5G
Manufacturer ON Semiconductor
Catalog Transistors - FETs, MOSFETs - RF
Description MOSFET P-CH 20V 660MA SOT-723
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer ON Semiconductor
Packaging Reel - TR
Status Active
Polarity P-Channel
Technology MOSFET
Drain-Source Breakdown Voltage 20V
Continuous Drain Current at 25°C 660mA (Ta)
Drive Voltage (Max Rds On, Min Rds On) 1.5V, 4.5V
Gate-Source Threshold Voltage 1.2V @ 250μA
Max Input Capacitance 170pF @ 16V
Maximum Gate-Source Voltage ±6V
Power Dissipation (Max) 310mW (Ta)
Maximum Rds On at Id,Vgs 480 mOhm @ 780mA, 4.5V
Temperature Range - Operating -55°C to 150°C (TJ)
Mounting SMD (SMT)
Case / Package SOT-723
Dimension SOT-723
Win Source Part Number 1083895-NTK3139PT5G
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian NTK3139PT5G CAD Model

Description

Introducing the NTK3139PT5G - A High-Performance P-Channel MOSFET

The NTK3139PT5G is a state-of-the-art P-Channel MOSFET brought to you by ON Semiconductor, a company known for its innovative and reliable semiconductor solutions. This MOSFET is designed to meet the rigorous demands of modern electronic circuits, providing efficient power management and signal amplification across various applications.

Key Features

  • Low On-Resistance: The NTK3139PT5G boasts an incredibly low on-resistance (RDS(on)), which translates to reduced power loss and improved efficiency in your circuit designs.
  • High Threshold Voltage: With a high threshold voltage, this P-Channel MOSFET ensures reliable operation and reduces the risk of unintentional turn-on due to noise or fluctuating power levels.
  • Small Footprint: Housed in a compact SOT-953 package, the NTK3139PT5G is ideal for space-constrained applications, allowing for more compact and streamlined designs.
  • Low Gate Charge: The device features a low total gate charge (QG), which minimizes switching losses and enables faster switching speeds, making it suitable for high-frequency applications.

Applications

The versatility of the NTK3139PT5G makes it an excellent choice for a wide range of applications, including:

  • Power management circuits
  • Load switches
  • Battery management systems
  • DC-DC converters
  • Portable devices

Environmental and Quality Certifications

ON Semiconductor is committed to environmental stewardship and quality. The NTK3139PT5G is manufactured with the highest standards, ensuring both reliability and compliance with environmental regulations. It is RoHS compliant and lead-free, making it a responsible choice for your electronic designs.

Conclusion

Whether you are designing power-efficient portable devices or robust power management systems, the NTK3139PT5G from ON Semiconductor offers the performance and reliability you need. Its low on-resistance, high threshold voltage, and compact form factor make it an indispensable component for cutting-edge electronic solutions.
