ON Semiconductor NTMT185N60S5H Overview

The ON Semiconductor NTMT185N60S5H is a high-performance, N-channel power MOSFET designed to deliver efficient power management and conversion for a variety of demanding applications. This robust semiconductor device is part of ON Semiconductor's extensive portfolio of energy-efficient power solutions, aimed at providing top-notch performance while minimizing energy consumption.

Key Features

• High Current Capability: With a continuous drain current (ID) of 120A, the NTMT185N60S5H can handle high-power applications with ease.
• Low On-Resistance: Featuring an ultra-low on-resistance (RDS(on)) of 0.029 Ohm, this MOSFET ensures minimal power loss and improves overall efficiency.
• High Voltage Tolerance: The device is rated for a maximum drain-source voltage (VDSS) of 600V, making it suitable for high-voltage applications.
• Fast Switching: The fast-switching capabilities reduce switching losses and improve performance in high-frequency power conversion systems.

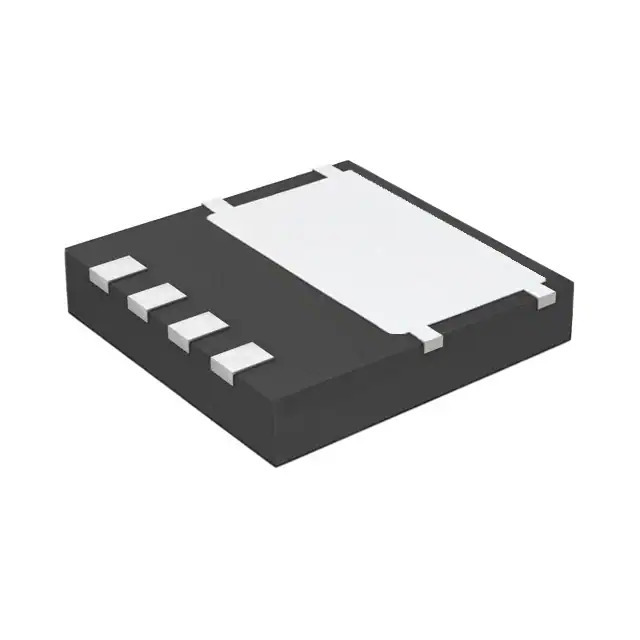

• Robust Thermal Performance: The NTMT185N60S5H is encapsulated in an H-PSOF package, which provides excellent thermal performance and helps in maintaining device reliability under high-temperature operating conditions.

Applications

This power MOSFET is ideal for a wide range of applications, including:

• Power Supplies
• DC-DC Converters
• Motor Drives
• Uninterruptible Power Supplies (UPS)
• Switch Mode Power Supplies (SMPS)
• Power Factor Correction (PFC) circuits

Quality and Reliability

ON Semiconductor is committed to delivering high-quality and reliable components. The NTMT185N60S5H MOSFET is built to meet rigorous standards, ensuring stable performance and longevity in critical applications. With ON Semiconductor's reputation for excellence in power management technology, this MOSFET is a reliable choice for engineers and designers looking to optimize their power systems.

For detailed specifications, application notes, and additional resources, designers are encouraged to consult the official ON Semiconductor documentation and support resources.
