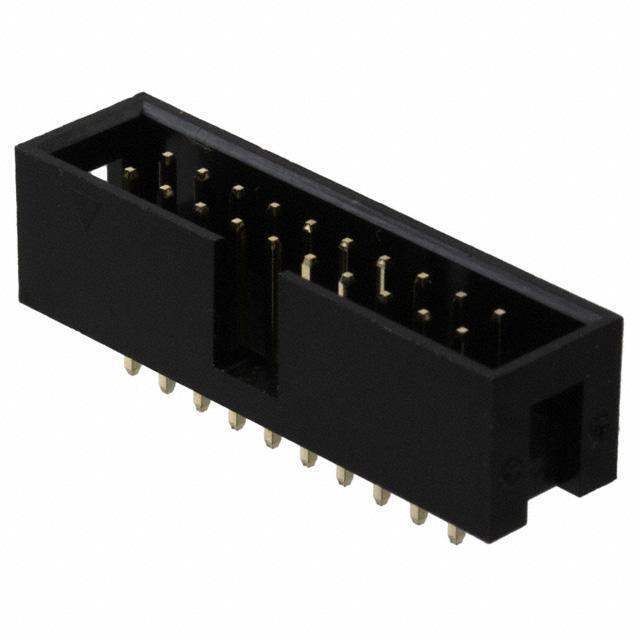

302-S201 On Shore Technology Inc.
Same model may have multiple batches, images only for reference.

302-S201

Part No 302-S201
Manufacturer On Shore Technology Inc.
Catalog Rectangular Connectors
Description CONN HEADER VERT 20POS 2.54MM
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1201181-302-S201
Manufacturer On Shore Technology Inc.
Category Connectors, Interconnects -Rectangular Connectors -Headers, Male Pins
Series 302
Package Tray
Product Status Active
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 20
Row Spacing - Mating 0.100" (2.54mm)
Ultra Librarian 3D Model Ultra Librarian 302-S201 CAD Model

Description

The 302 series male pin header is a versatile electronic connector designed for use in various applications.

  • Product Name: 302 series
  • Manufacturer: On Shore Technology Inc.
  • Connector Type: Rectangular connector
  • Positions: 20
  • Connector Type: Header
  • Contact Type: Male pin
  • Pitch for Mating: 0.100" (2.54mm)
  • Row Spacing for Mating: 0.100" (2.54mm)
  • Packaging: Tray
  • Product Status: Active
