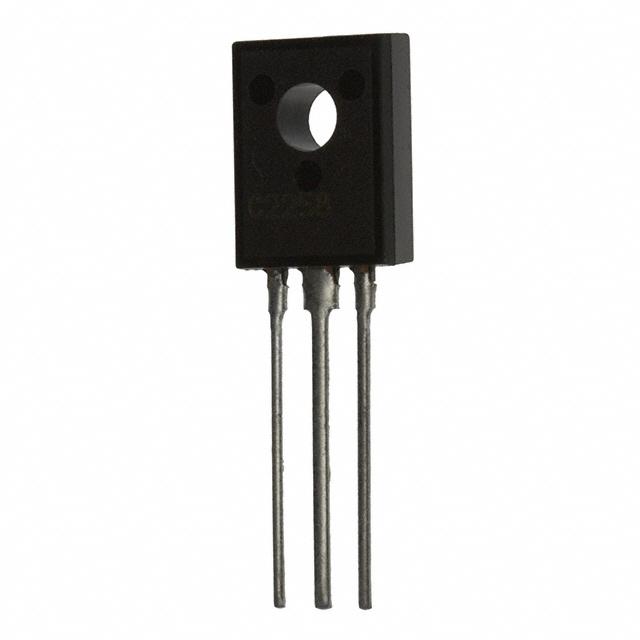

Same model may have multiple batches, images only for reference.
2SA08860Q Panasonic
Same model may have multiple batches, images only for reference.

2SA08860Q

Part No 2SA08860Q
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 40V 1.5A TO-126
Datasheet
2SA08860Q Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity PNP
Maximum Current Collector 1.5A
VCEO Maximum Collector-Emitter Breakdown Voltage 40V
Max Vce (sat) 1V @ 150mA, 1.5A
Collector Cut-off Current(Max) 100μA
Typical Gain (hFE) (Min) 80 @ 1A, 5V
Maximum Power Dissipation 1.2W
Frequency - Transition 150MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TO-126
Win Source Part Number 1004228-2SA08860Q
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian 2SA08860Q CAD Model

Description

The Panasonic Electronic Components 2SA08860Q electronic component is a through-hole mounted discrete semiconductor product with a maximum collector current of 1.5A and a maximum collector-emitter breakdown voltage of 40V.

  • Maximum Collector Current: 1.5A
  • Maximum Collector-Emitter Breakdown Voltage: 40V
  • Frequency Transition: 150MHz
  • Transistor Polarity: PNP
  • Category: Discrete Semiconductor Products
  • Status: Obsolete (EOL)
  • Packaging: Bulk
  • Popularity: Medium
  • Case/Package: TO-126
