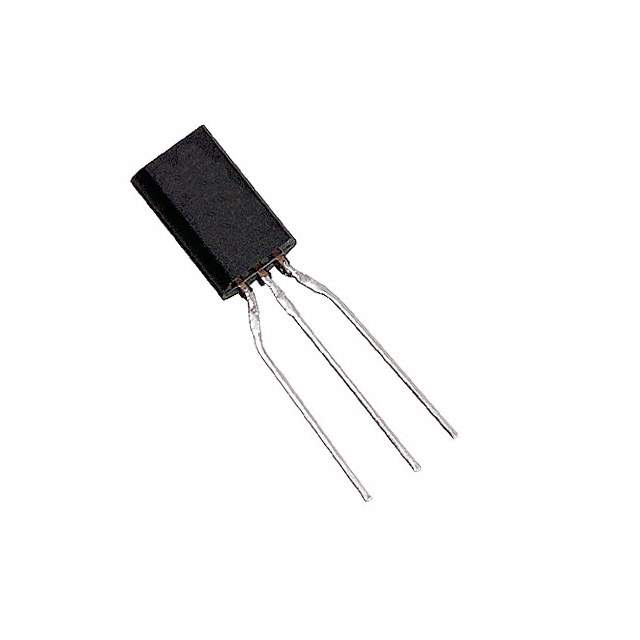

2SA1619ARA Real Image
Same model may have multiple batches, images only for reference.

2SA1619ARA

Part No 2SA1619ARA
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 0.5A TO-92NL
Datasheet
2SA1619ARA Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 500mA
Voltage - Collector Emitter Breakdown (Maximum) 50V
Vce Saturation (Maximum) @ Ib, Ic 600mV @ 30mA, 300mA
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 120 @ 150mA, 10V
Power - Max 1W
Frequency - Transition 200MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-226-3, TO-92-3 Long Body
Manufacturer Package TO-92NL
Win Source Part Number 762381-2SA1619ARA
Popularity Medium
Supply and Demand Status Limited
Family Name 2SA1619A
Introduction Date October 07, 1998
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SA1619ARA CAD Model

Description

The Panasonic Electronic Components 2SA1619ARA is a PNP transistor designed for use in discrete semiconductor products.

  • Maximum Power: 1W
  • Frequency Transition: 200MHz
  • Package: TO-226-3, TO-92-3 long body
  • Voltage Breakdown: 50V
  • Current Collector Cutoff: 100nA
  • DC Current Gain: 120 @ 150mA, 10V
  • Obsolete (EOL): Yes
  • Alternative Parts: 2SA673A(K)B, 2SA673A(K)D, 50A02SP-AC
  • Introduction Date: October 07, 1998
  • Estimated EOL Date: Obsolete
