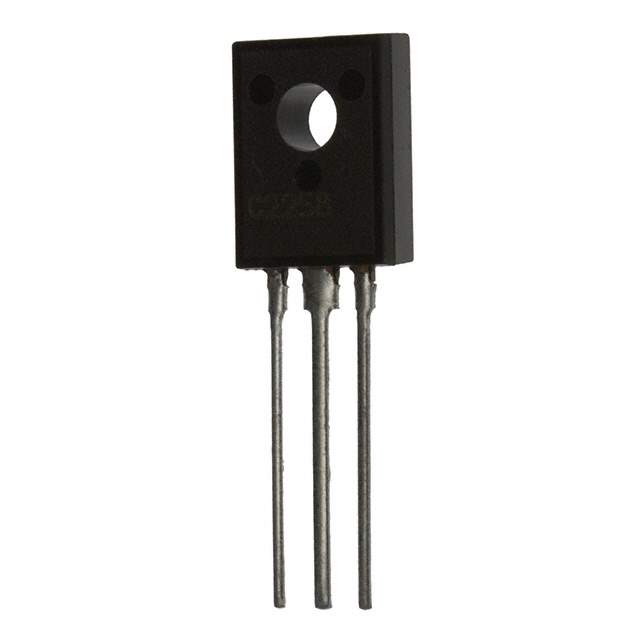

The 2SA794 is a silicon PNP epitaxial planar transistor from Panasonic. It is designed for low-noise amplifier applications and high-speed switching applications.

Applications:

• Low-noise amplifier circuits
• High-speed switching circuits
• Audio amplifiers
• Consumer electronics
• Industrial equipment

Features:

• Low noise figure
• High transition frequency
• Excellent linearity
• High collector current capability
• Small signal amplification

Benefits:

• Improved signal clarity in low-noise amplifier circuits.
• Efficient switching performance in high-speed applications.
• Enhanced audio quality in audio amplifiers.
• Reliable performance in various electronic devices.

Technical Specifications:

The 2SA794 features a collector-base voltage (VCBO) of -60V, a collector-emitter voltage (VCEO) of -50V, and an emitter-base voltage (VEBO) of -5V. It has a collector current (IC) rating of -150mA and a collector power dissipation (PC) of 250mW. The transistor has a transition frequency (fT) of 180 MHz and a typical noise figure (NF) of 1dB. The operating junction temperature range is -55°C to +150°C.

The 2SA794 is typically available in a TO-92 package.
