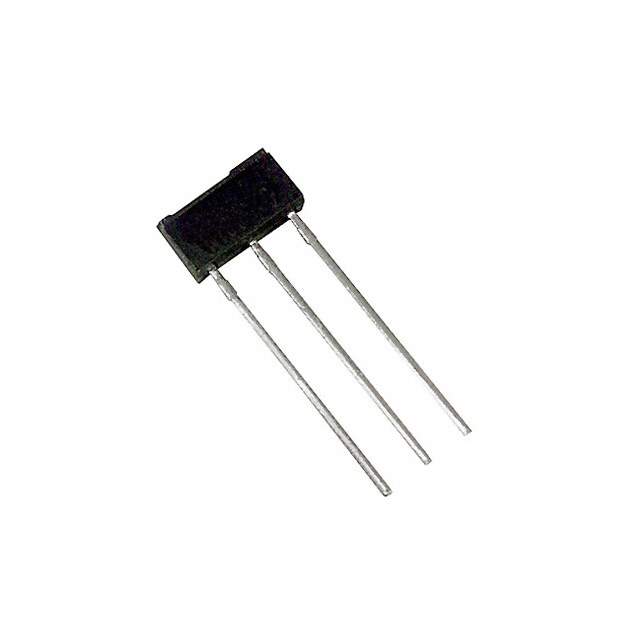

2SB1321A0A Real Image
Same model may have multiple batches, images only for reference.

2SB1321A0A

Part No 2SB1321A0A
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 0.5A MT-1
Datasheet
2SB1321A0A Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Tape in Box
Part Status Obsolete(EOL)
Transistor Type PNP
Current - Collector (Ic) (Maximum) 500mA
Voltage - Collector Emitter Breakdown (Maximum) 50V
Vce Saturation (Maximum) @ Ib, Ic 600mV @ 30mA, 300mA
Current - Collector Cutoff (Maximum) 1μA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 85 @ 10mA, 10V
Power - Max 600mW
Frequency - Transition 200MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package 3-SIP
Manufacturer Package MT-1-A1
Win Source Part Number 762504-2SB1321A0A
Popularity Medium
Supply and Demand Status Balance
Family Name 2SB1321A
Introduction Date July 11, 2000
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SB1321A0A CAD Model

Description

The Panasonic Electronic Components 2SB1321A0A is a PNP transistor with a maximum power of 600mW.

  • DC Current Gain: 85 @ 10mA and 10V
  • Transistor Type: PNP
  • Frequency Transition: 200MHz
  • Maximum Voltage for Collector Emitter Breakdown: 50V
  • Current Collector Cutoff: 1μA
  • Package: 3-SIP
  • Mounting: Through Hole
  • Operating Temperature Range: 150°C (TJ)
  • Family: 2SB1321A
  • Package: MT-1-A1
  • Obsolete: Yes
  • Estimated EOL Date: Yes
  • Alternative Parts: BC 807-40 E6433, BC807-40 B5003, BC 807-40 E6327XT
  • Introduction Date: July 11, 2000
  • ECCN: EAR99
