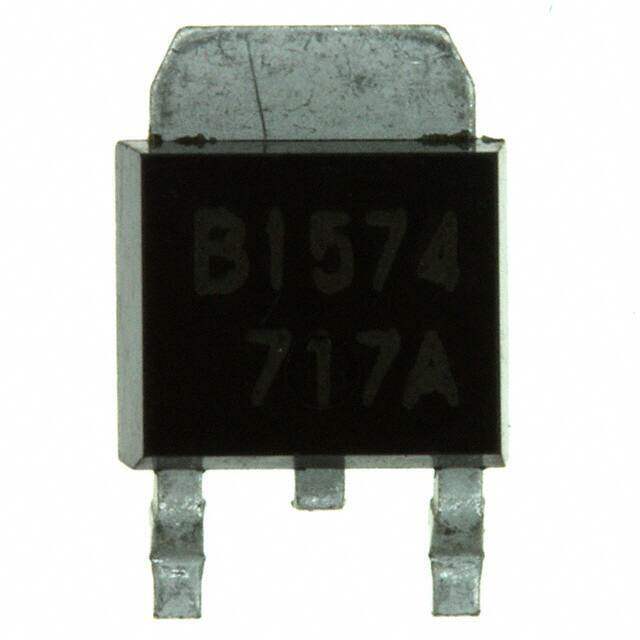

2SB157400L Real Image
Same model may have multiple batches, images only for reference.

2SB157400L

Part No 2SB157400L
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS PNP 50V 2A U-G2
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products - Transistors - Bipolar (BJT) - Single Bipolar Transistors
Mfr Panasonic
Package Tape & Reel
Product Status Obsolete
Transistor Type PNP
Current - Collector (Ic) (Max) 2 A
Voltage - Collector Emitter Breakdown (Max) 50 V
Vce Saturation (Max) @ Ib, Ic 300mV @ 50mA, 1A
Current - Collector Cutoff (Max) 100nA (ICBO)
DC Current Gain (hFE) (Min) @ Ic, Vce 120 @ 200mA, 2V
Power - Max 10 W
Frequency - Transition 80MHz
Temperature Range - Operating 150°C (TJ)
Mounting Type Surface Mount
Package / Case TO-252-3, DPak (2 Leads + Tab), SC-63
Supplier Device Package U-G2
Base Product Number 2SB1574
Standard Package 3,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8541.29.0075
Win Source Part Number 855118-2SB157400L
Ultra Librarian 3D Model Ultra Librarian 2SB157400L CAD Model

Description

The Panasonic 855118-2SB157400L is a PNP bipolar transistor with a maximum power of 10W.

  • Manufacturer: Panasonic
  • Maximum Power: 10W
  • Voltage Breakdown: 50V
  • Maximum Collector Current: 2A
  • Mounting Type: Surface mount
  • Package: TO-252-3
  • Vce Saturation: 300mV @ 50mA and 1A
  • DC Current Gain: 120 @ 200mA and 2V
  • Transition Frequency: 80MHz
  • Product Series: Obsolete
  • Package: Tape and reel
  • Quantity: 3,000 pieces
  • Operating Temperature: Up to 150°C (TJ)
