Same model may have multiple batches, images only for reference.

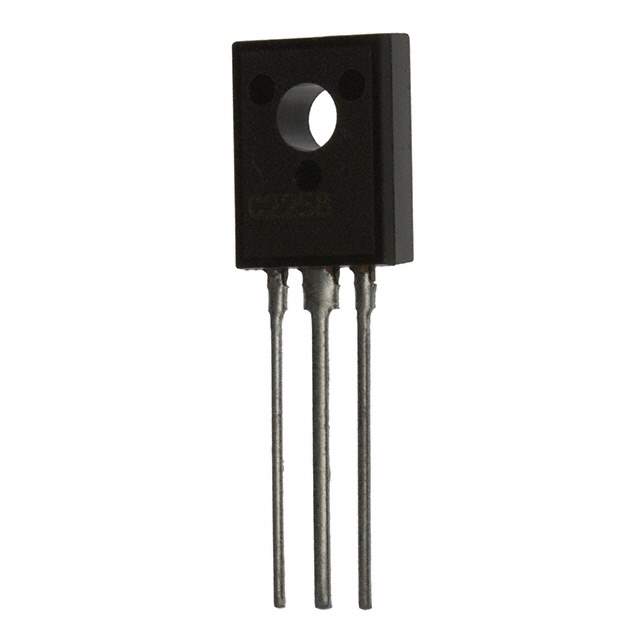

2SC19530S Real Image
Same model may have multiple batches, images only for reference.

2SC19530S

Part No 2SC19530S
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 150V 0.05A TO-126
Datasheet
2SC19530S Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN
Current - Collector (Ic) (Maximum) 50mA
Voltage - Collector Emitter Breakdown (Maximum) 150V
Vce Saturation (Maximum) @ Ib, Ic 1V @ 3mA, 30mA
DC Current Gain (hFE) (Minimum) @ Ic, Vce 130 @ 10mA, 5V
Power - Max 1W
Frequency - Transition 70MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-225AA, TO-126-3
Manufacturer Package TO-126B-A1
Win Source Part Number 762551-2SC19530S
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian 2SC19530S CAD Model

Description

The Panasonic Electronic Components 2SC19530S is a discrete semiconductor product with a maximum power of 1W and a frequency transition of 70MHz. It is an obsolete (EOL) product with medium popularity.
