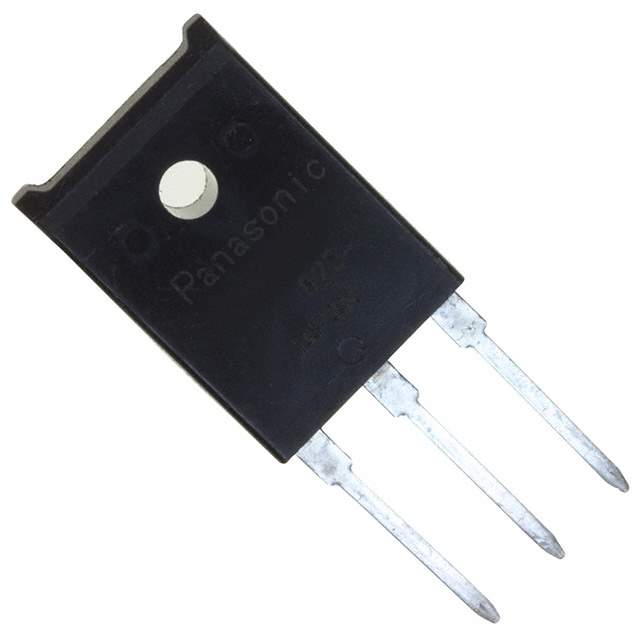

2SC3507 Real Image
Same model may have multiple batches, images only for reference.

2SC3507

Part No 2SC3507
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN 800V 5A TOP-3F
Datasheet
2SC3507 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Status Obsolete(EOL)
Transistor Polarity NPN
Maximum Current Collector 5A
VCEO Maximum Collector-Emitter Breakdown Voltage 800V
Max Vce (sat) 1.5V @ 600mA, 3A
Collector Cut-off Current(Max) 50μA (ICBO)
Typical Gain (hFE) (Min) 6 @ 3A, 5V
Maximum Power Dissipation 3W
Frequency - Transition 6MHz
Temperature Range - Operating 150°C (TJ)
Mounting Through Hole
Case / Package TOP-3F-A1
Win Source Part Number 1004378-2SC3507
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 2SC3507 CAD Model

Description

The Panasonic Electronic Components 2SC3507 is a NPN transistor that is widely used in electronic applications.

  • Current Collector (Max): 5A
  • VCEO Maximum: 800V
  • Mounting: Through Hole
  • Package: TOP-3F-A1
  • Power Dissipation: 3W
  • Typical Gain (hFE) (Min): 6 @ 3A, 5V
  • Popularity: Medium
  • Status: Obsolete
