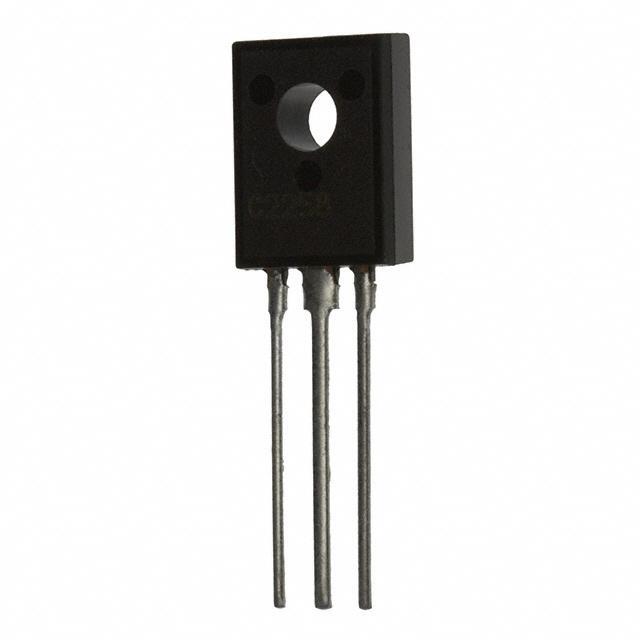

2SD0946B Panasonic
Same model may have multiple batches, images only for reference.

2SD0946B

Part No 2SD0946B
Manufacturer Panasonic
Catalog Transistors (BJT) - Single
Description TRANS NPN DARL 80V 1A TO-126
Datasheet
2SD0946B Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Obsolete(EOL)
Transistor Type NPN - Darlington
Current - Collector (Ic) (Maximum) 1A
Voltage - Collector Emitter Breakdown (Maximum) 80V
Vce Saturation (Maximum) @ Ib, Ic 1.8V @ 1mA, 1A
Current - Collector Cutoff (Maximum) 100nA (ICBO)
DC Current Gain (hFE) (Minimum) @ Ic, Vce 4000 @ 1A, 10V
Power - Max 1.2W
Frequency - Transition 150MHz
Operating Temperature Range 150°C (TJ)
Mounting Style Through Hole
Package TO-225AA, TO-126-3
Manufacturer Package TO-126B-A1
Win Source Part Number 762924-2SD0946B
Popularity Medium
Supply and Demand Status Limited
Family Name 2SD0946
Introduction Date June 19, 2001
ECCN EAR99
Estimated EOL Date Obsolete
Ultra Librarian 3D Model Ultra Librarian 2SD0946B CAD Model

Description

The Panasonic Electronic Components 2SD0946B is an NPN-Darlington transistor that comes in a TO-225AA or TO-126-3 package.

  • Maximum Power Dissipation: 1.2W
  • DC Current Gain (hFE): 4000 @ 1A and 10V
  • Vce Saturation: 1.8V @ 1mA and 1A
  • Operating Temperature Range: 150°C
